Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 10 - Left Rear Wheel Speed Sensor Continuity Fault >> Test 10B

Test 10B

Fig. 123 Test 10B Part 1 Of 2:

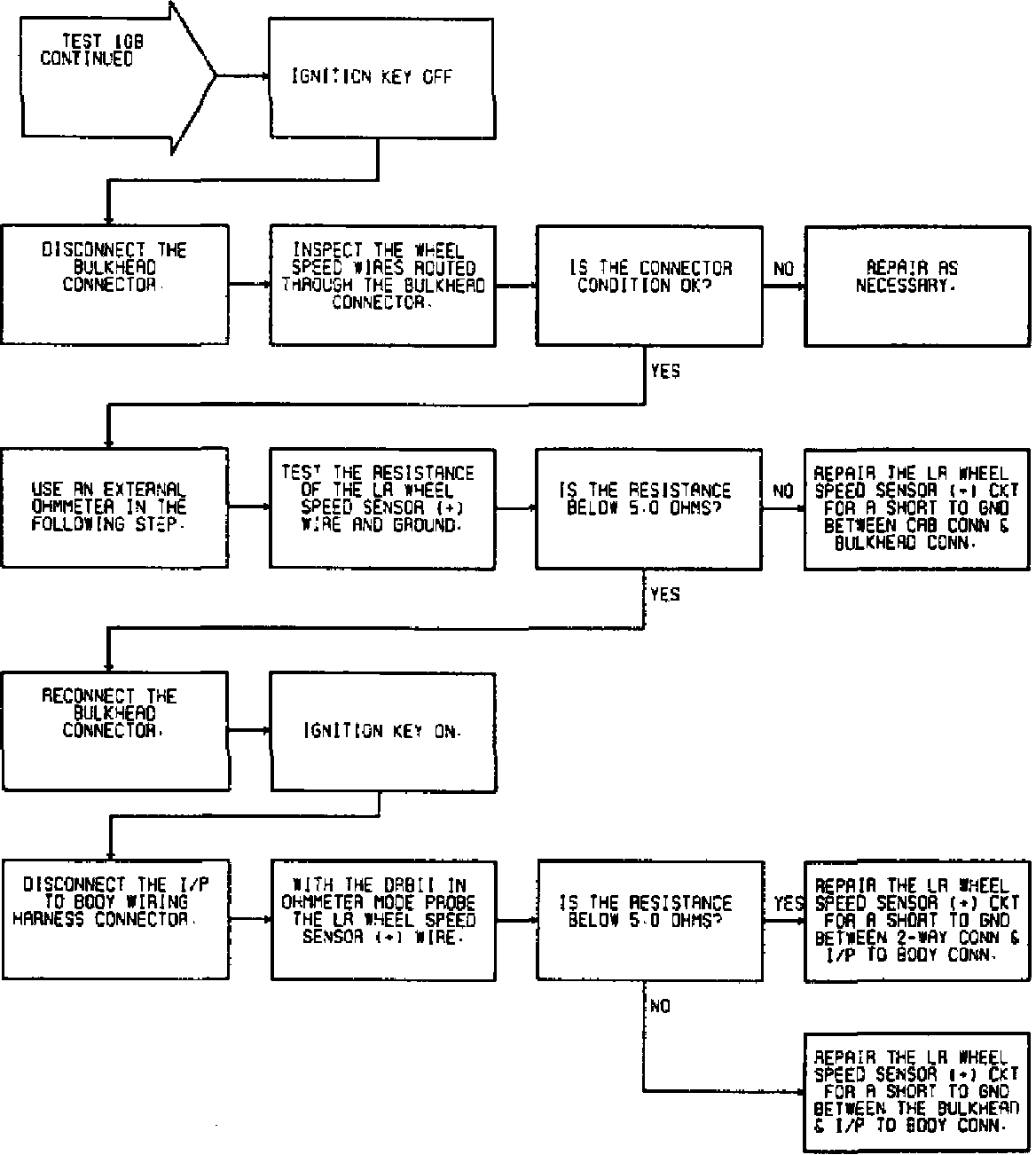

Fig. 123 Test 10B Part 2 Of 2:
