No Start Test
>>
No Start (NS) Tests
>>
NS-13C Repairing "No Reference Signal During Cranking" Fault
NS-13C Repairing "No Reference Signal During Cranking" Fault

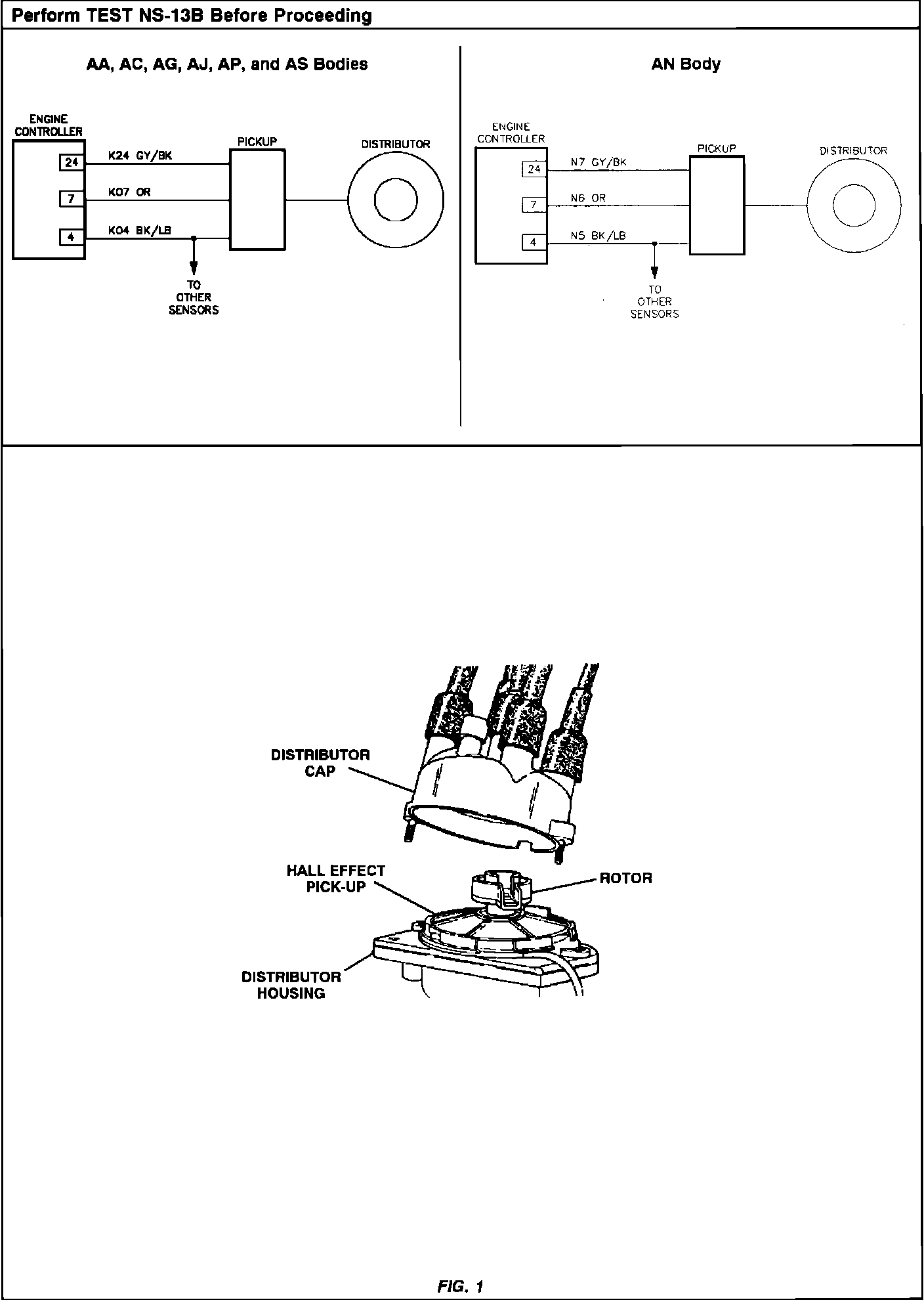

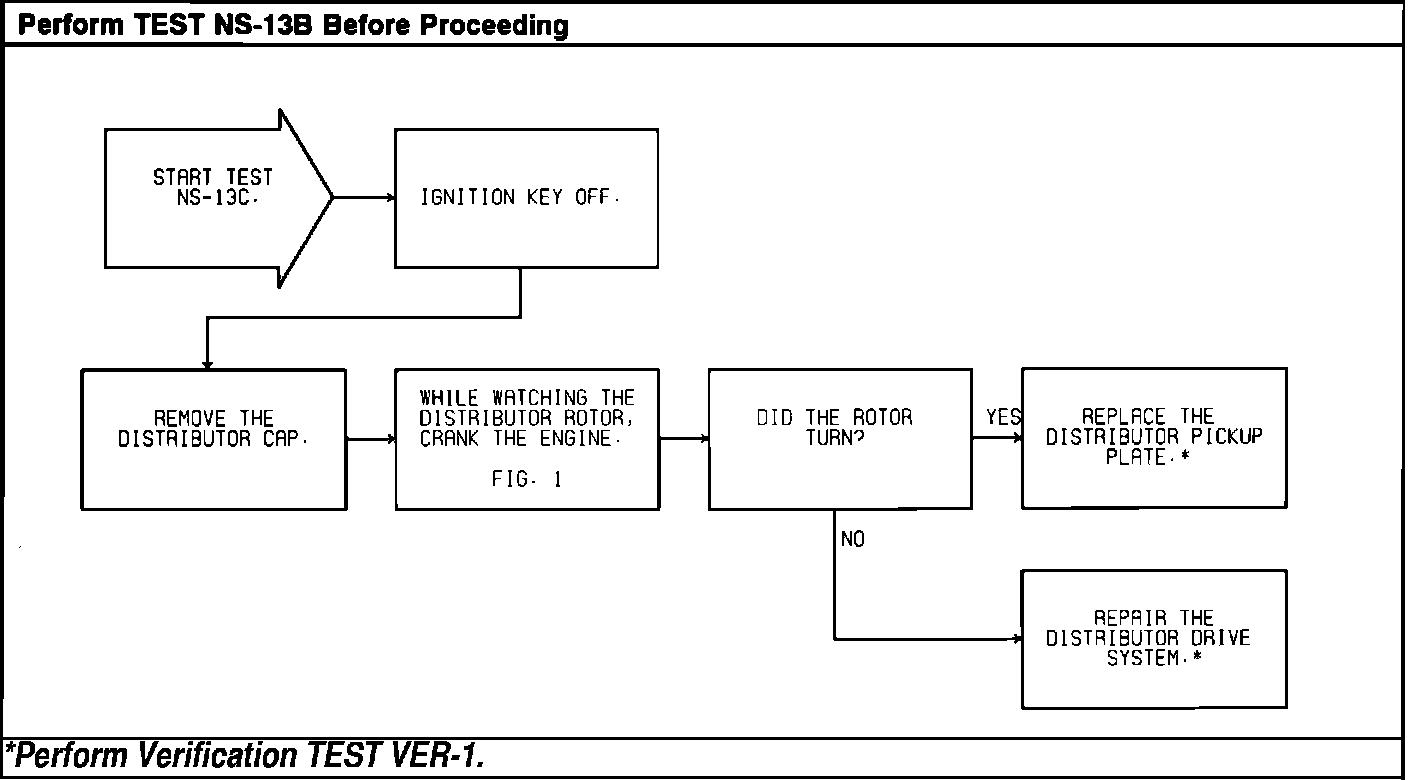

Test NS-13C - "No Tach Signal During Cranking":
Test NS-13C - "No Tach Signal During Cranking":
