Spirit L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
>>
Test 3C
Test 3C

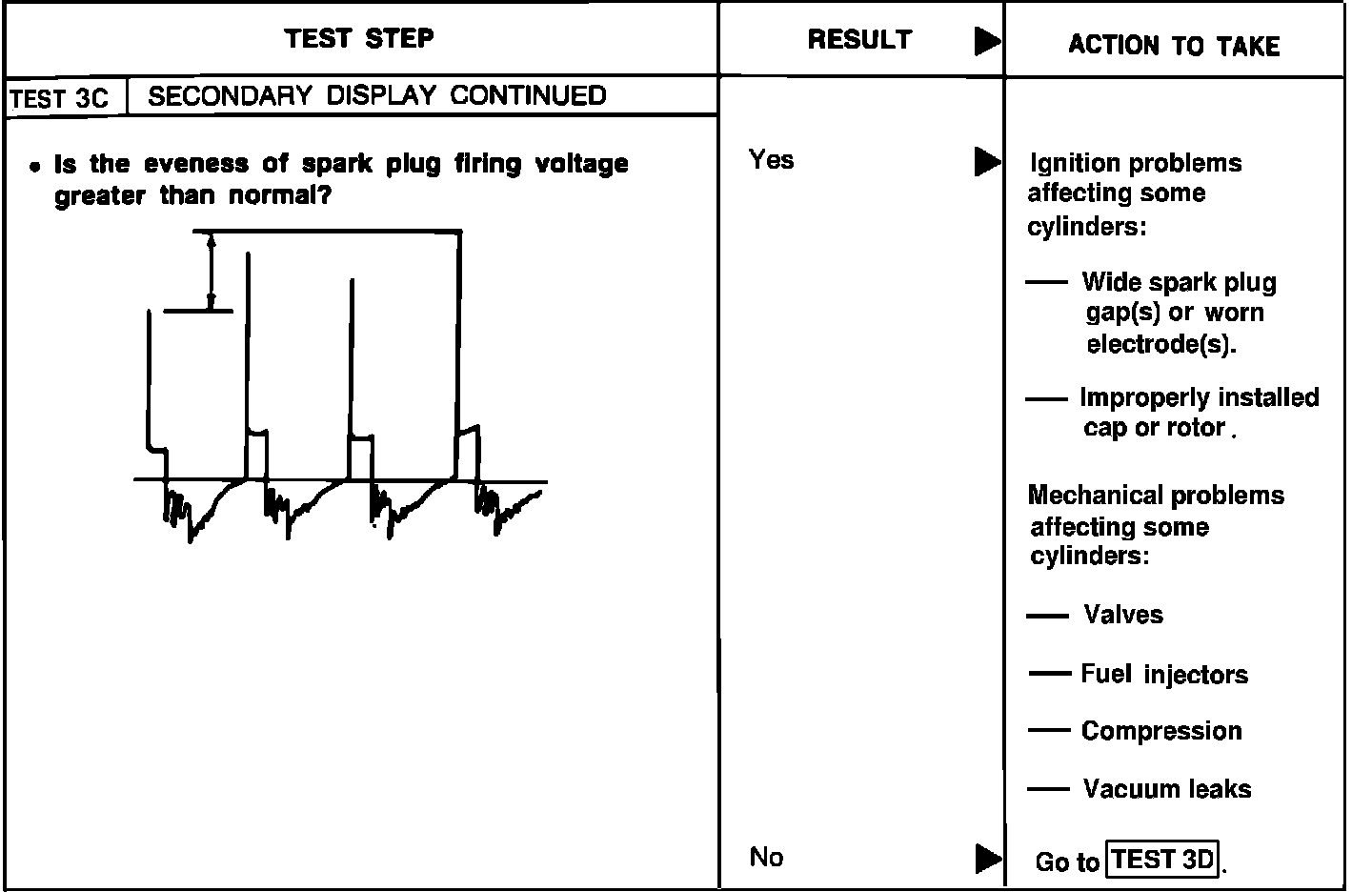

Test 3C - Secondary Display Continued:
