Cruise Control Servo: Service and Repair

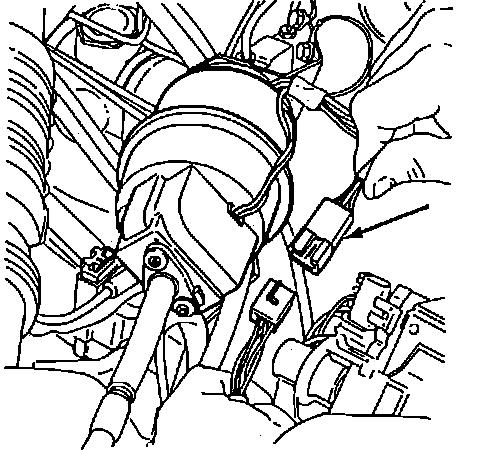

Fig. 2 Servo Electrical Connector:

Fig. 3 Servo Vacuum Line & Mounting Screws:

1. Disconnect electrical connector and vacuum line.
2. Remove servo mounting screws, and slide servo cable rearward and separate from from throttle body linkage.
3. Squeeze plastic tabs, remove cable from bracket, and remove servo.
4. Reverse procedure to install.
