NS-4 Checking Fuel Pressure TPS & Power to Injectors

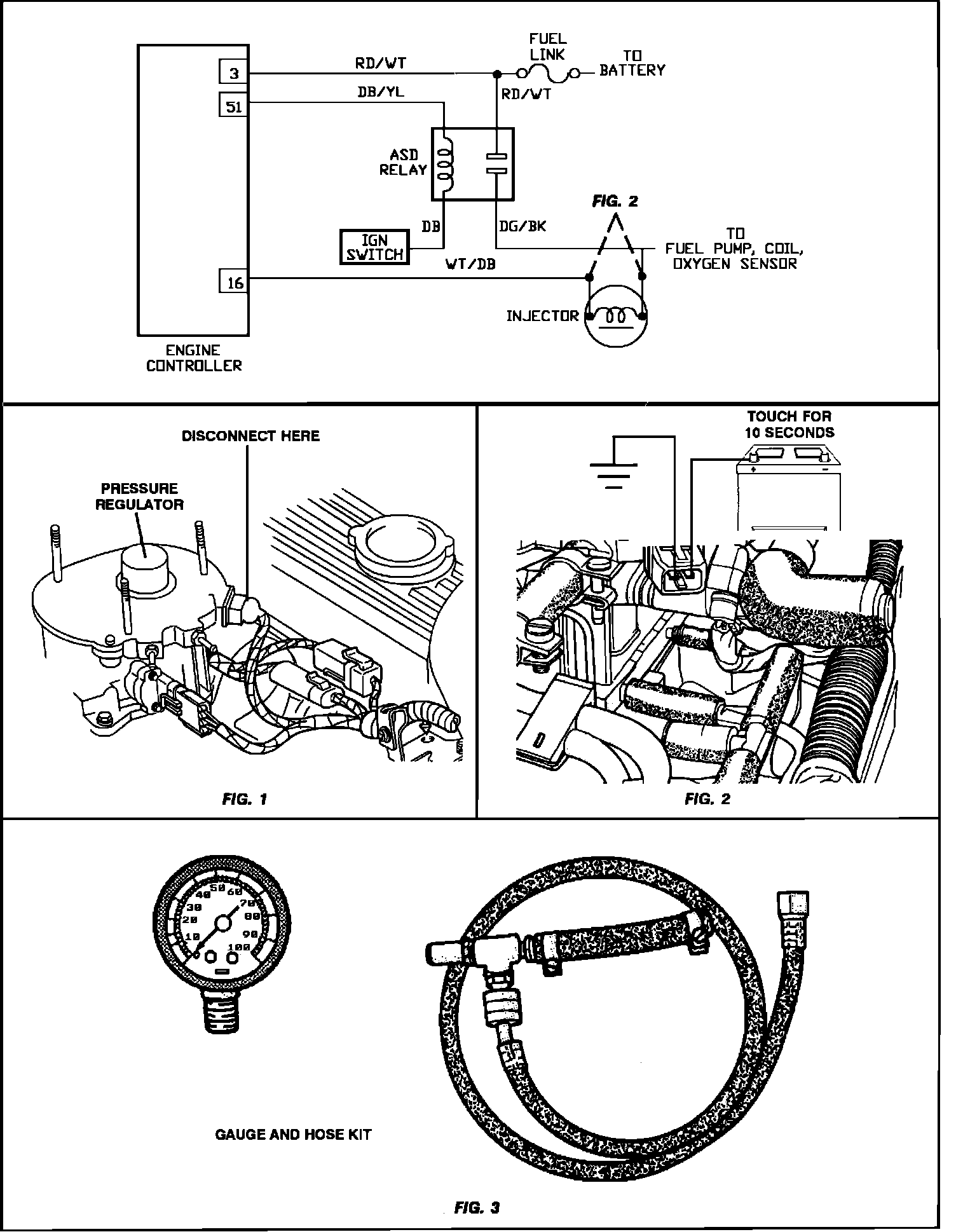

Test NS-4 - Checking Fuel Pressure, TPS, And Power Feed To Injectors:

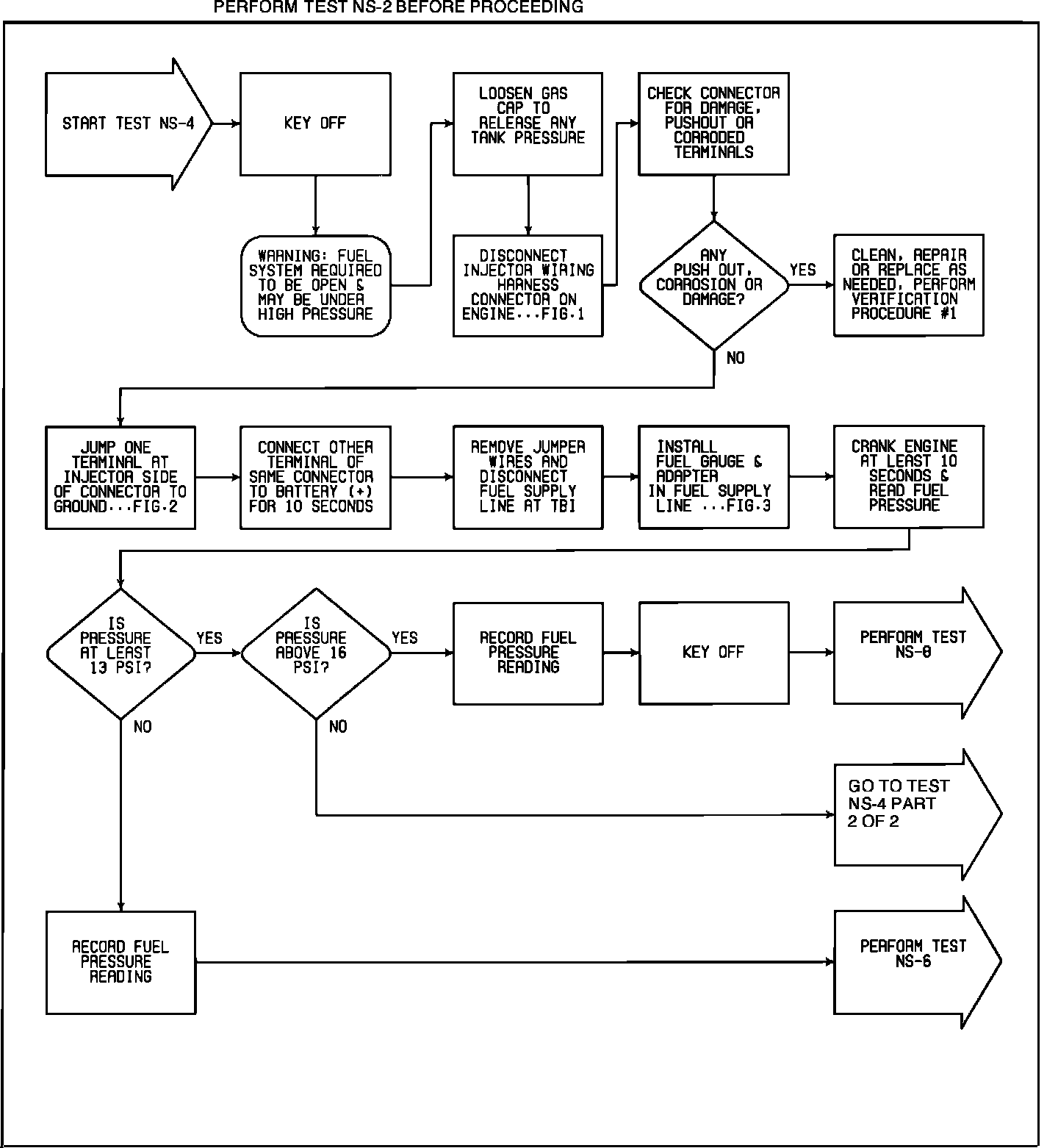

Test NS-4 - Checking Fuel Pressure, TPS, And Power Feed To Injectors:



Test NS-4 - Checking Fuel Pressure, TPS, And Power Feed To Injectors:
