Front Door Panel: Service and Repair

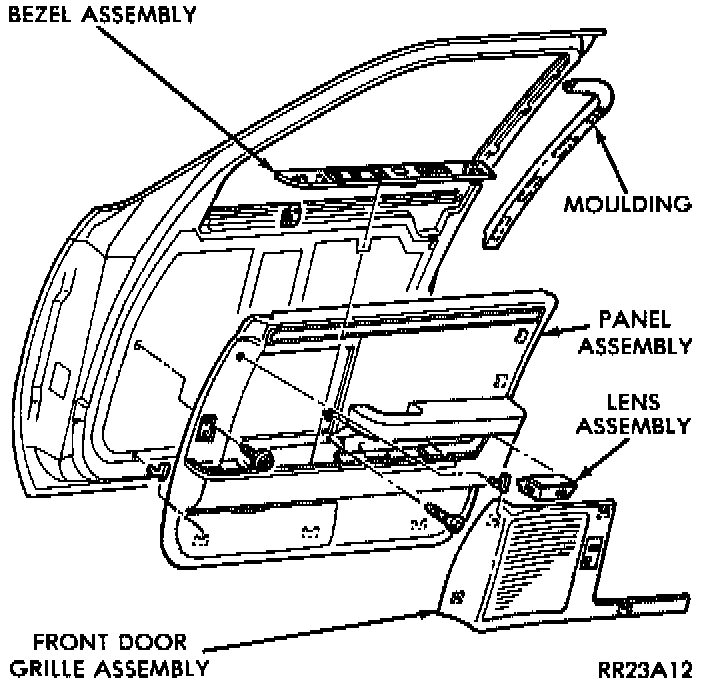

Front Door Trim Panel:

1. Remove speaker grille (4 clips).
^ Disconnect seat switch wiring (if equipped).
2. Remove courtesy lamp lens.
3. Remove 2 armrest screws and single trim panel attaching screw forward of speaker, 1 screw forward of speaker and 2 screws in lower panel behind carpet.
4. Remove switch bezel (5 clips).
^ Disconnect power window and door lock wiring.
5. Remove trim panel (2 clips).
^ Disconnect courtesy lamp wiring.
6. For installation, reverse above procedure.
