Computers and Control Systems: Locations

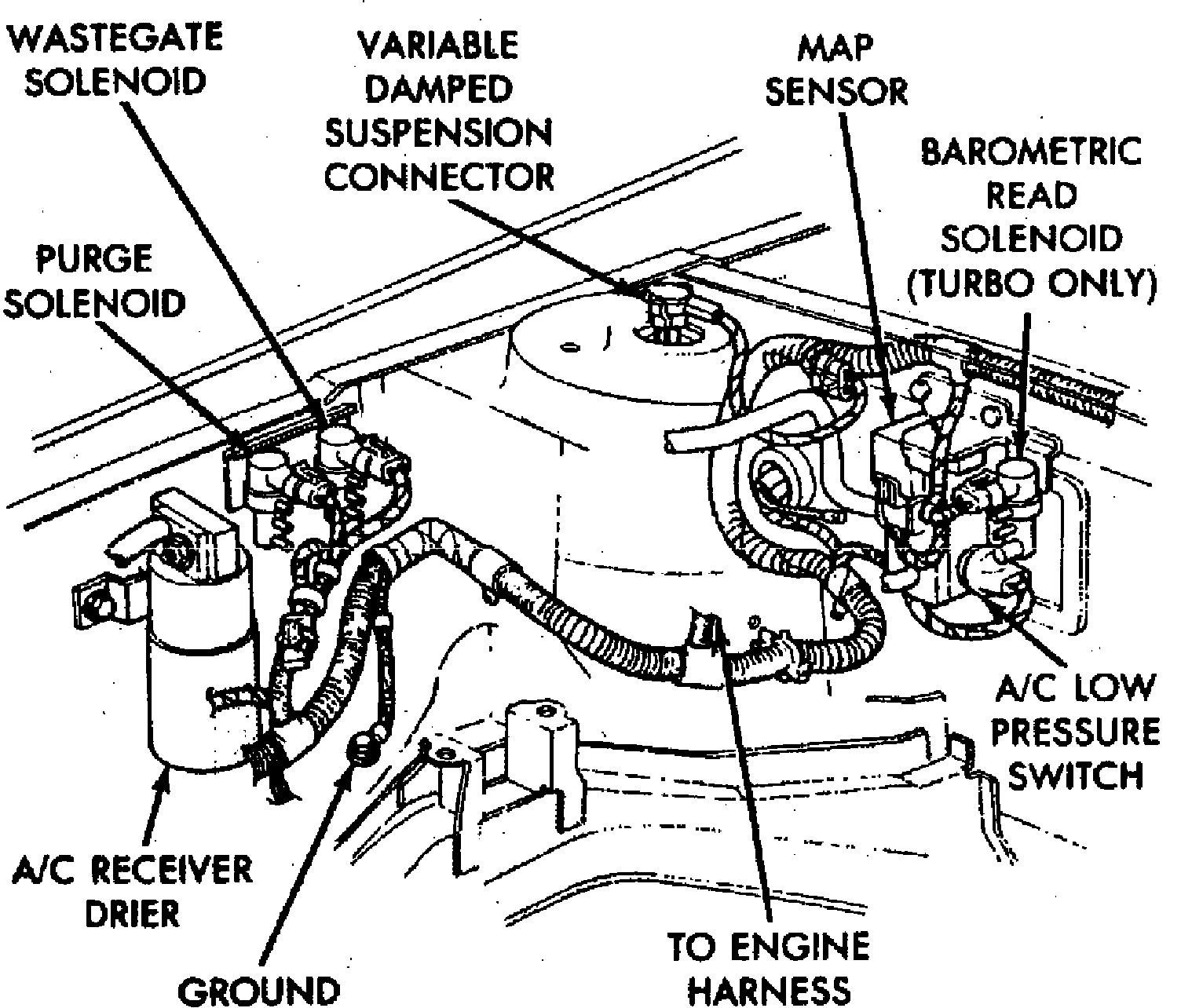

RH Rear Of Engine Compartment.:




RH Side Of Engine Compartment

Applicable to: 1990 Except 3.0L Engine
