Fuse Block
Fuse Block

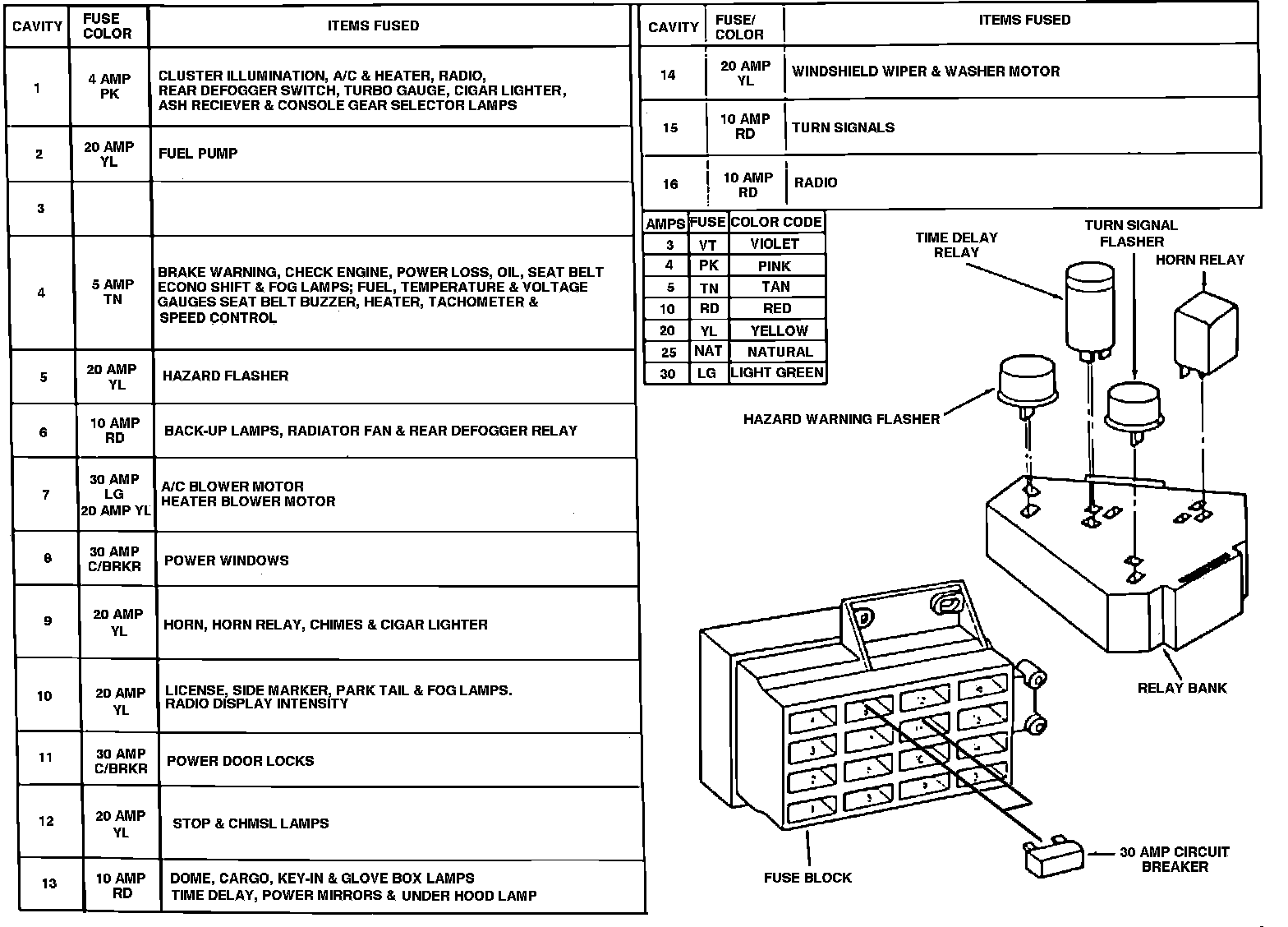

Fuse Panel - Left Side Under Instrument Panel, On Left Cowl:
Fuse Application Chart:
Fuse Application Chart:
