Home >> Dodge >> 1988 >> 600 L4-135 2.2L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Locations

Cruise Control Servo: Locations

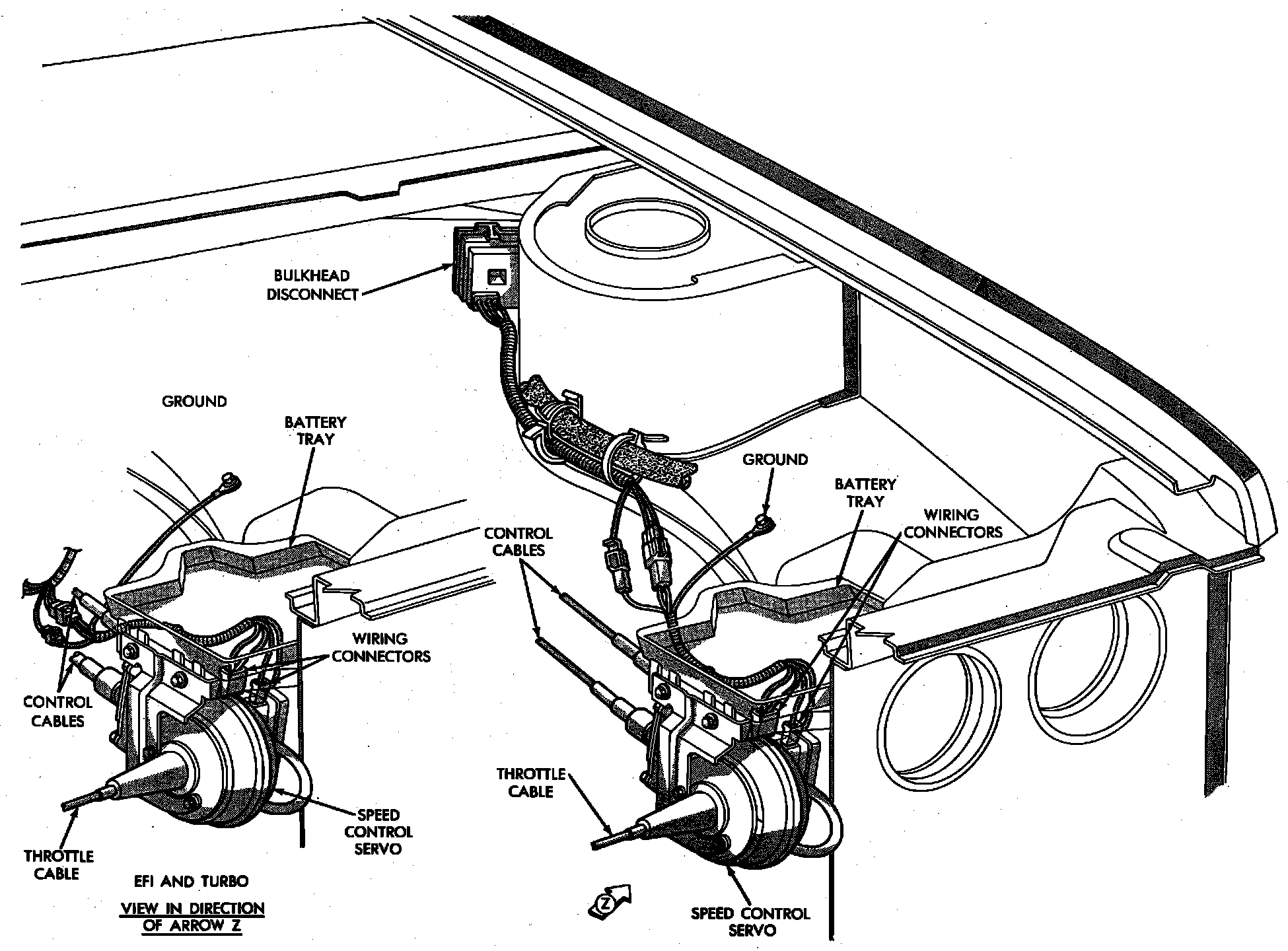

Engine Compartment Speed Control Components:




LH Front Corner Of Engine Compartment Below Battery Tray
