Home >> Dodge >> 1987 >> Shadow L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Oil Temperature Sensor/Switch, Engine

Oil Temperature Sensor/Switch, Engine

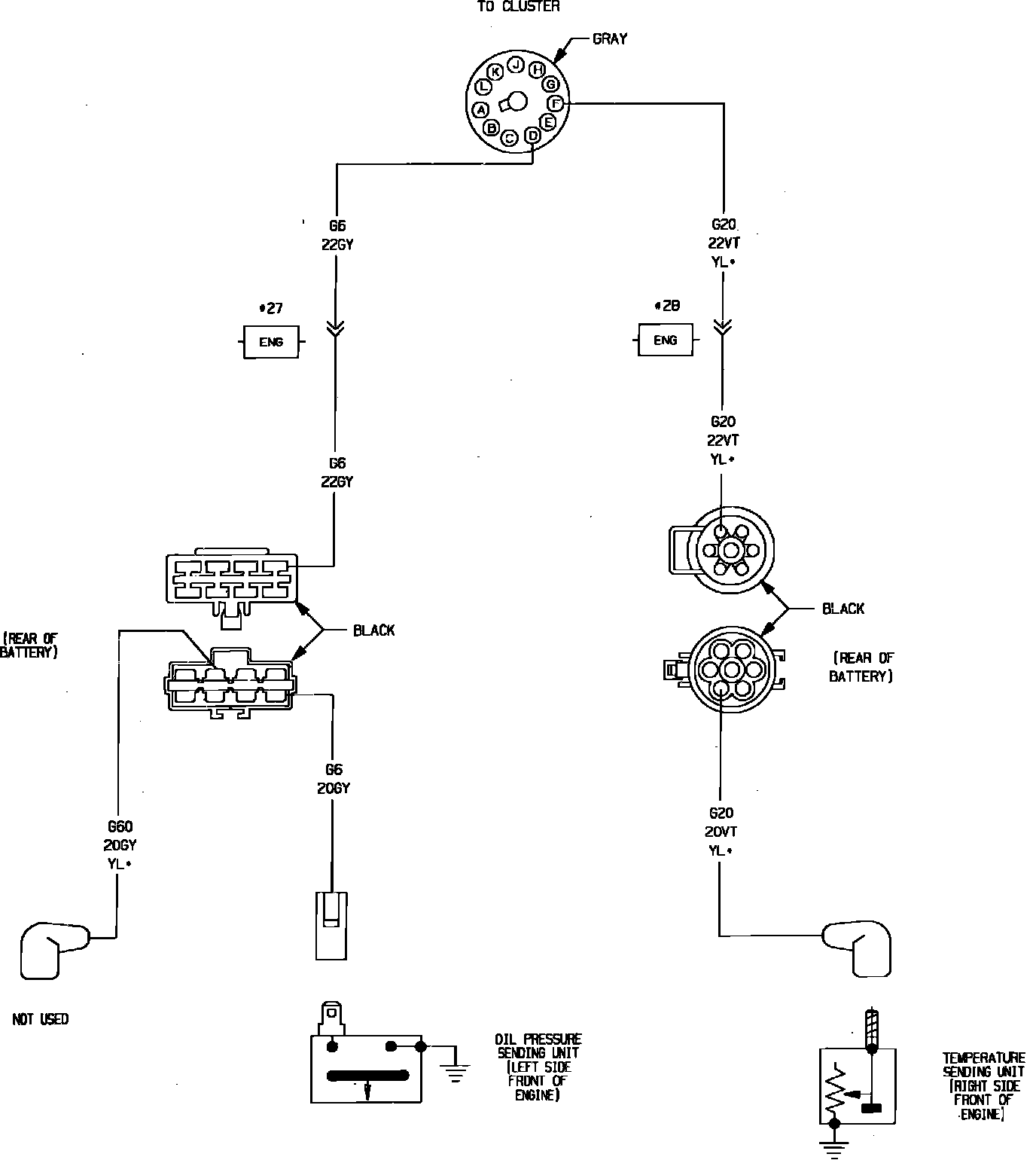

Fig. 28 Oil Pressure & Temperature Warning System Wiring Circuit:
