Accessory Delay Module

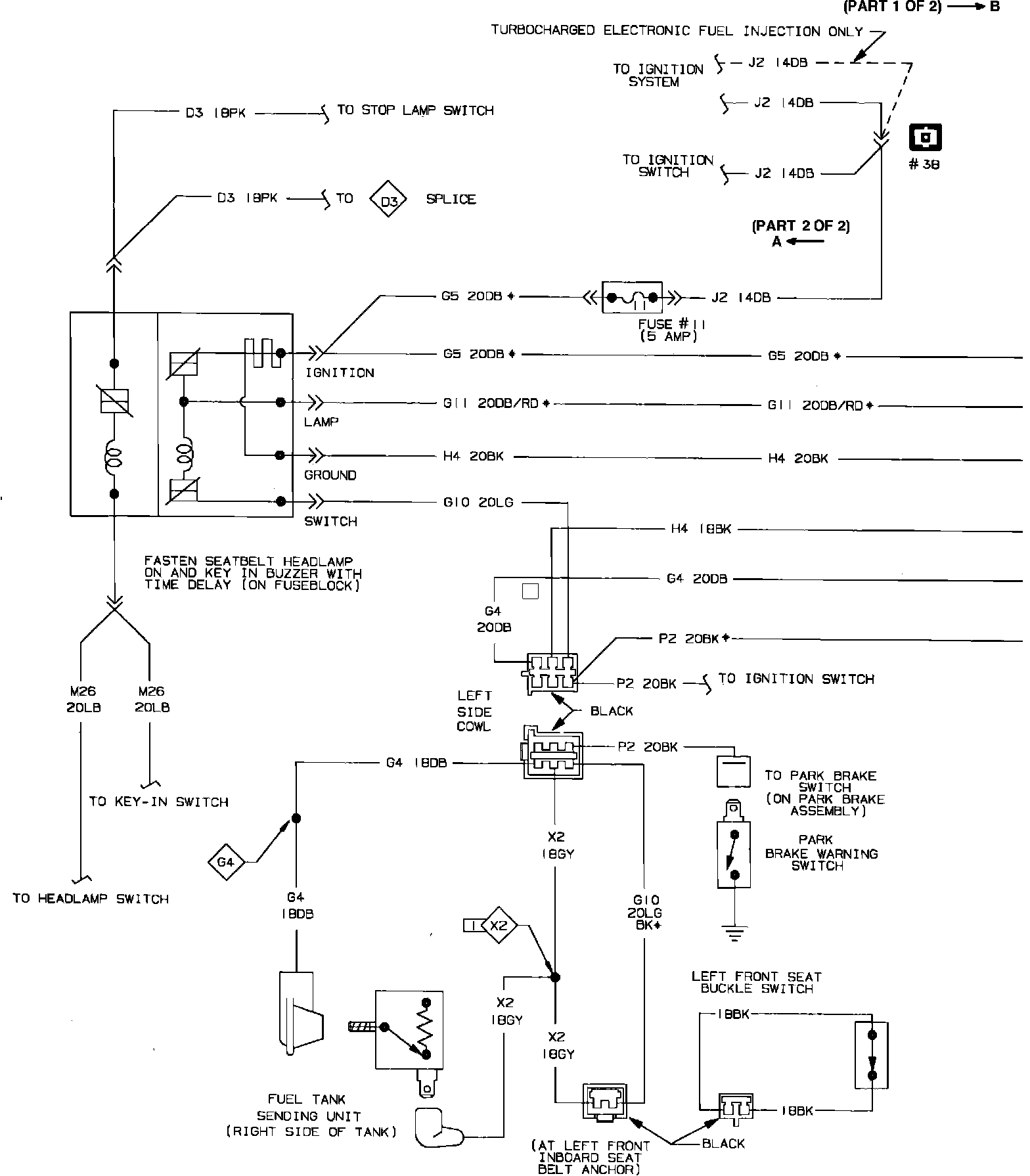

Fig. 13 Brake Switch, Fuel Gauge, Seatbelt Warning System & Tachometer System Wiring Circuit -- Part 1:



Fig. 13 Brake Switch, Fuel Gauge, Seatbelt Warning System & Tachometer System Wiring Circuit -- Part 2:
