Home >> Dodge >> 1985 >> Omni L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> Logic Module Connector >> Part 2 of 2

Part 2 of 2

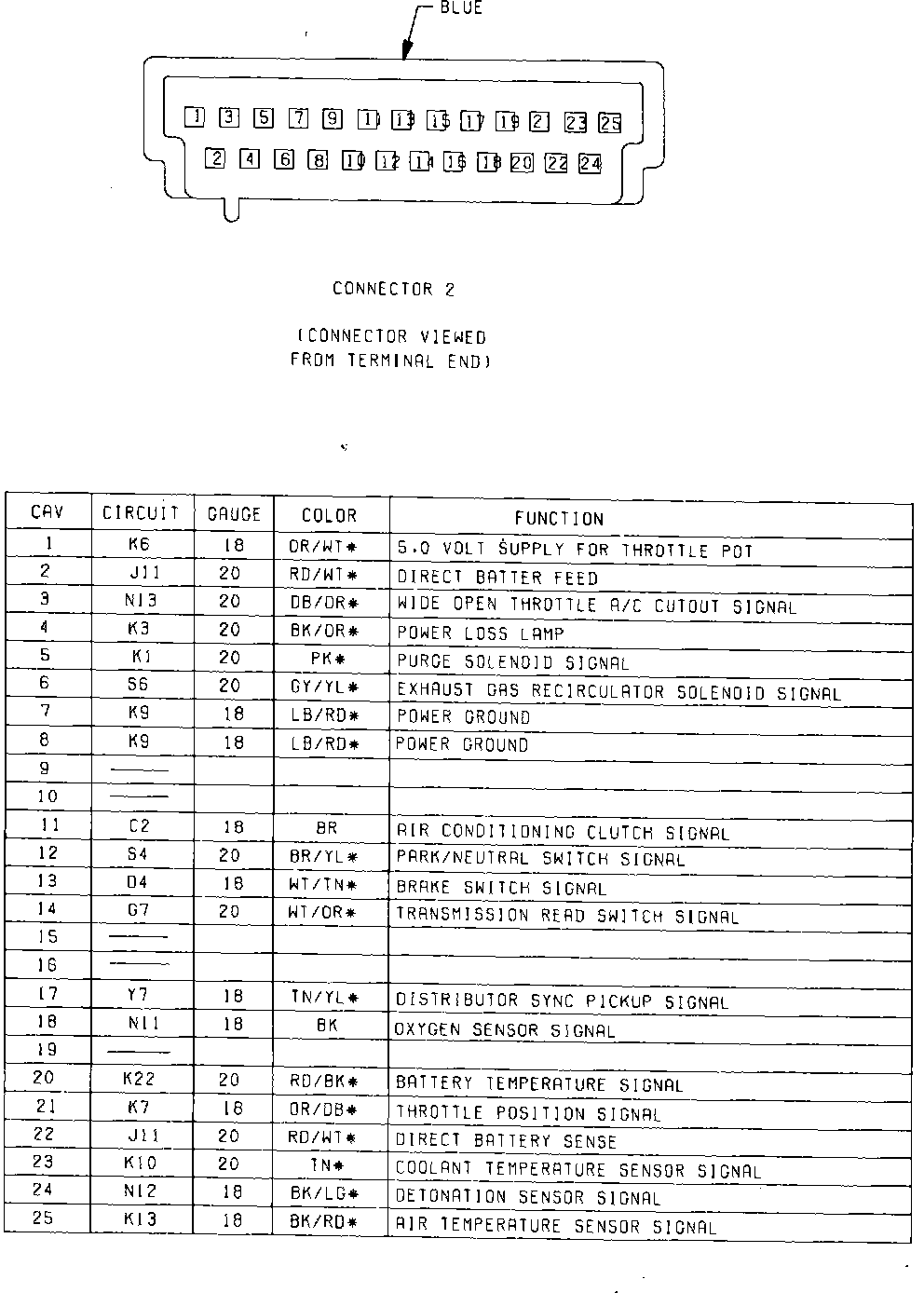

Fig. 6 Logic Module Connector 1985 W/Turbo Engine:
