Automatic Transmission/Transaxle: Testing and Inspection

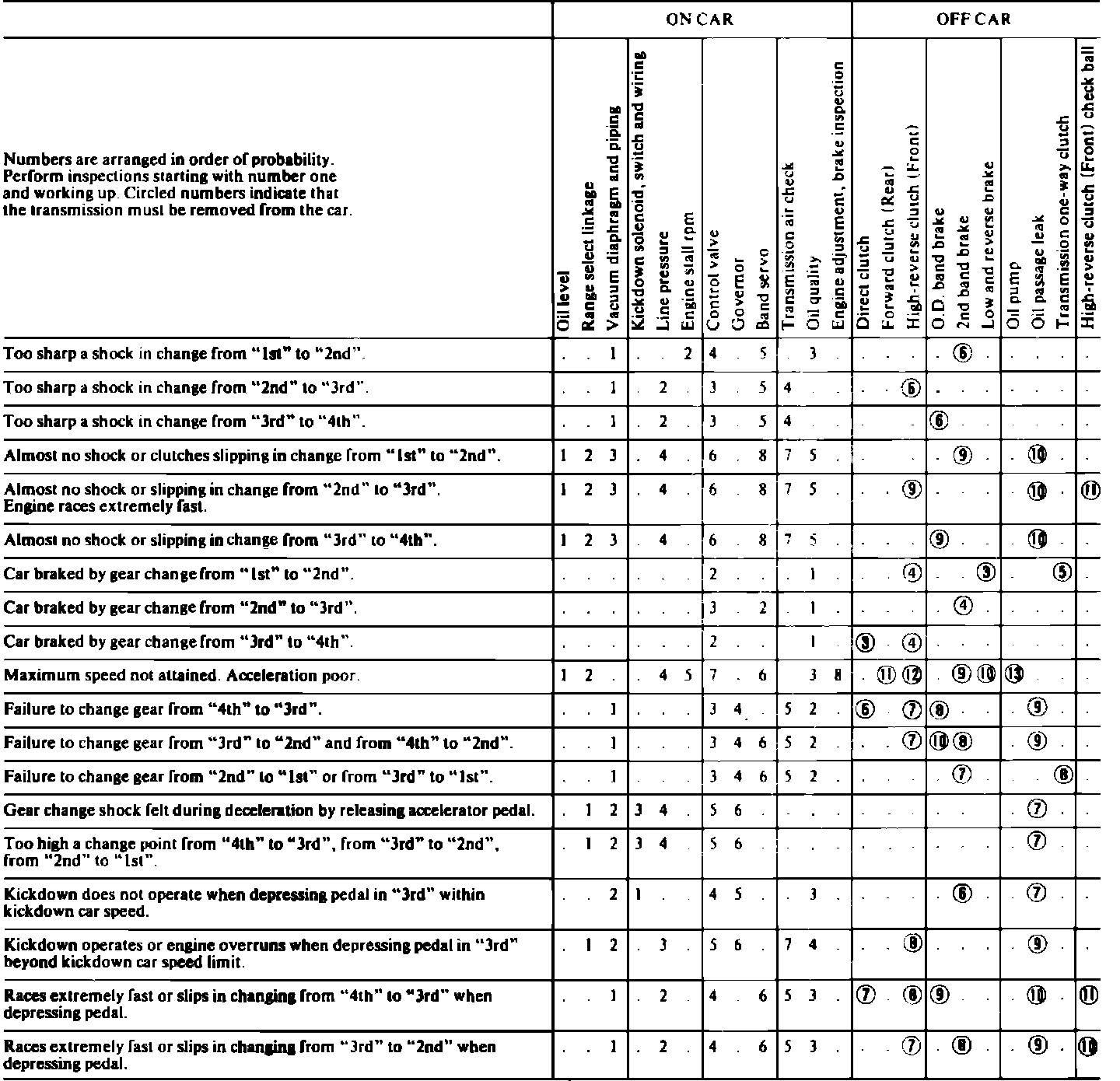

Fig. 25a Troubleshooting & diagnosis chart (Part 1 of 4). 1985-88 Conquest:

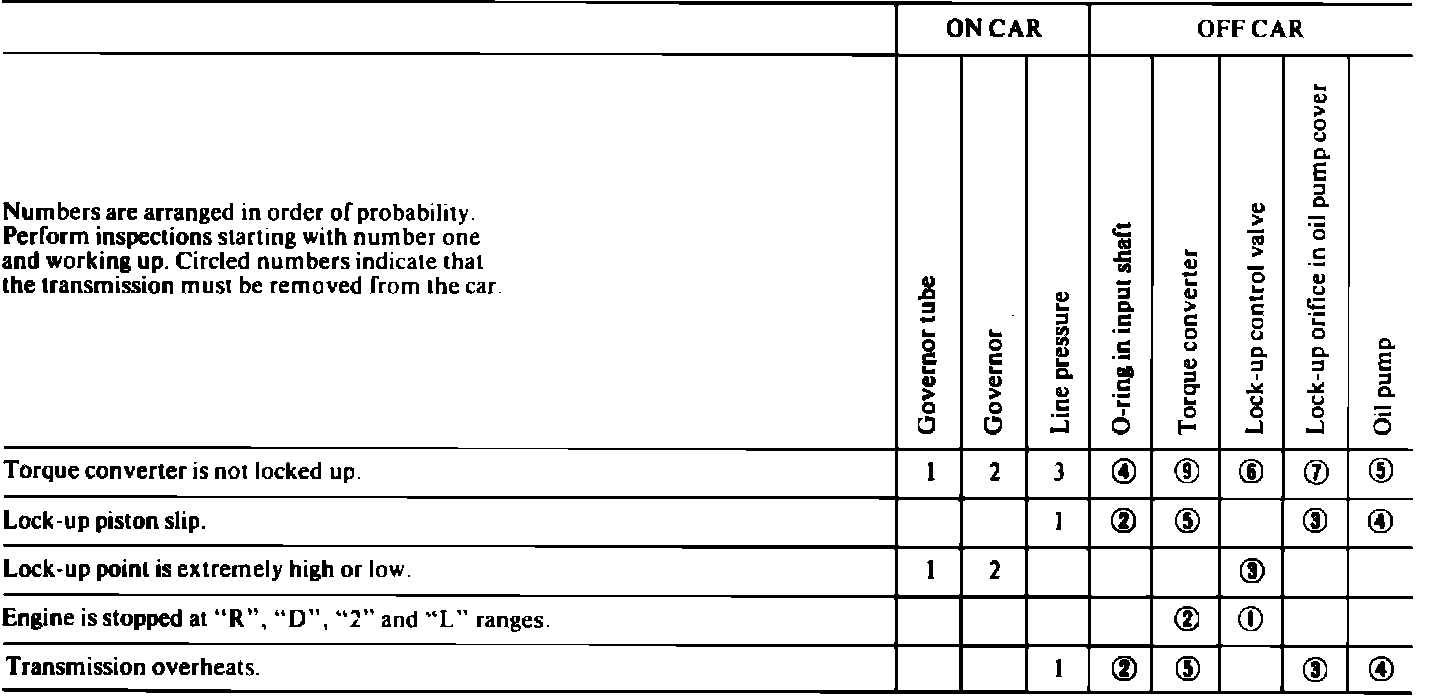

Fig. 25b Troubleshooting & diagnosis chart (Part 2 of 4). 1985-88 Conquest:

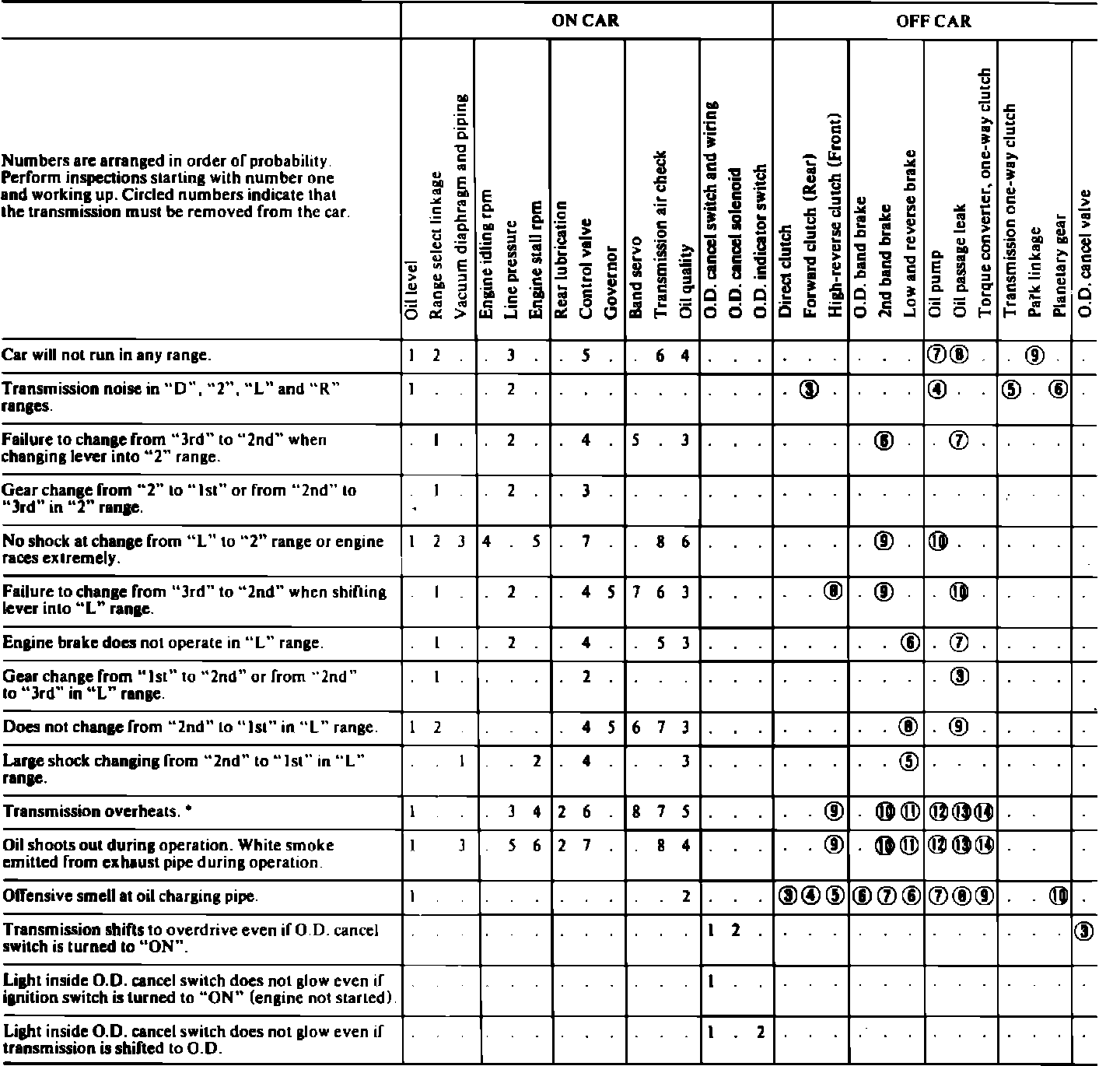

Fig. 25c Troubleshooting & diagnosis chart (Part 3 of 4). 1985-88 Conquest:

Fig. 25d Troubleshooting & diagnosis chart (Part 4 of 4). 1985-88 Conquest:
