Throttle Cable Adjusting Nut - Torque Specification

84chrysler8

Models


1984 Conquest With 2.6L Fuel Injected Turbocharged Engine


Subject


Throttle Cable Adjusting Nut Torque Specification


Index


FUEL

Date

March 19, 1984


No..


14-12-84

P-983-C

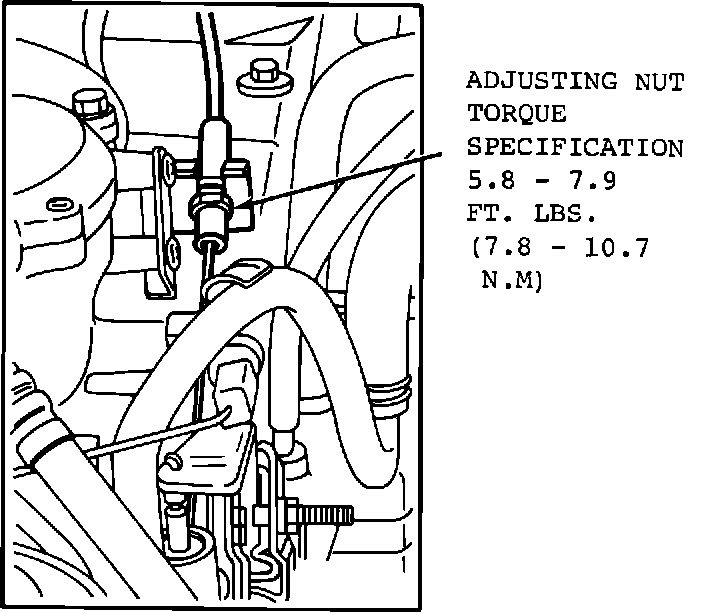

FIGURE 1:

The throttle cable adjusting nut tightening torque specification has been established at 5.8 to 7.9 foot pounds (7.8 to 10.7 Newton-meters) (Figure 1).
POLICY: Information only
