Disassembly

1. Remove injection mixer, then place in a suitable soft jawed vise.

Fig. 45 Exploded view of injection mixer. 1984-86 models shown, 1987-89 similar:

2. Disconnect fuel pressure regulator hose from regulator and mixer body, Fig. 45.

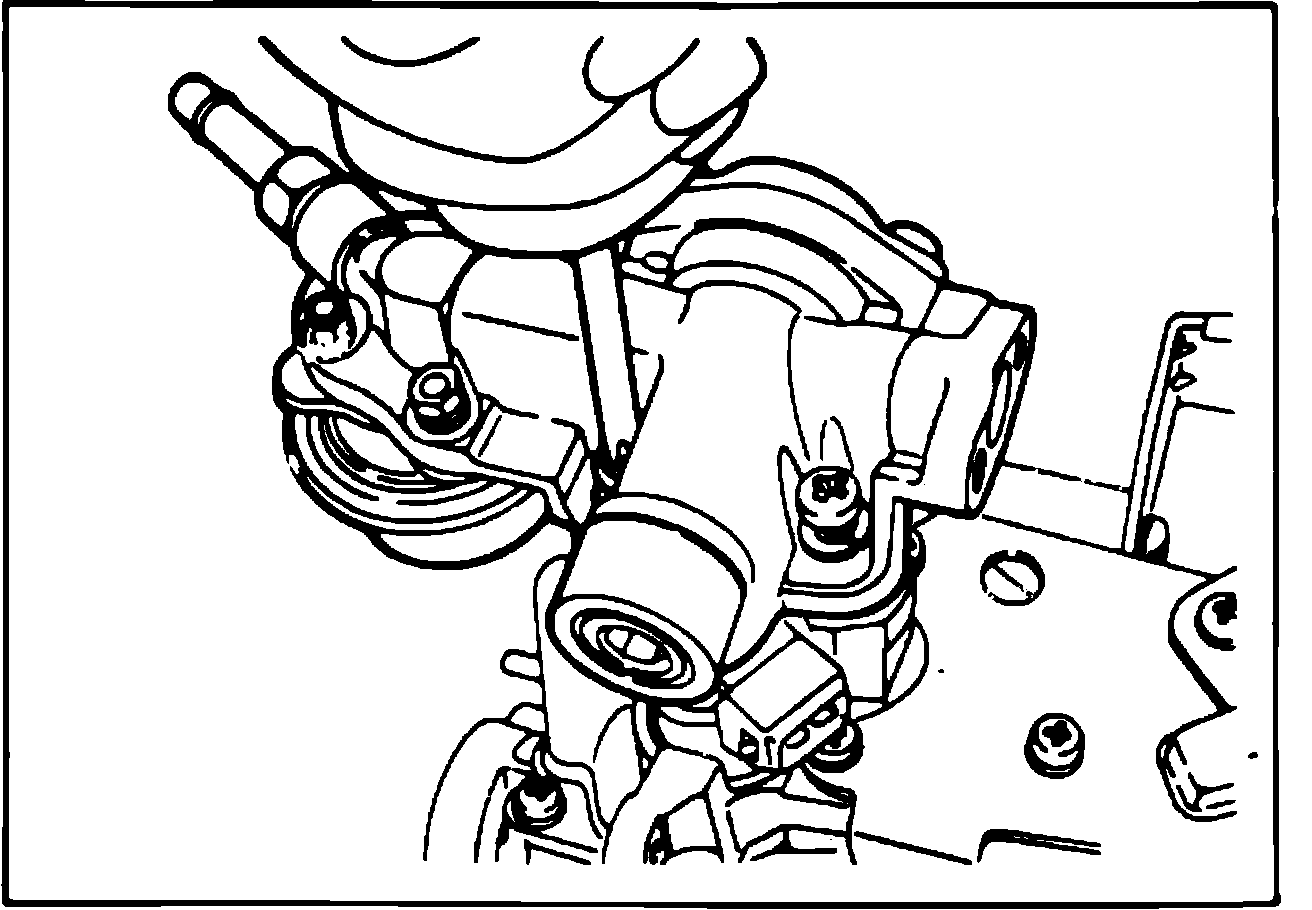

Fig. 46 Injector holder removal:

3. Remove injector holder attaching screws, then the retainer, Fig. 46.

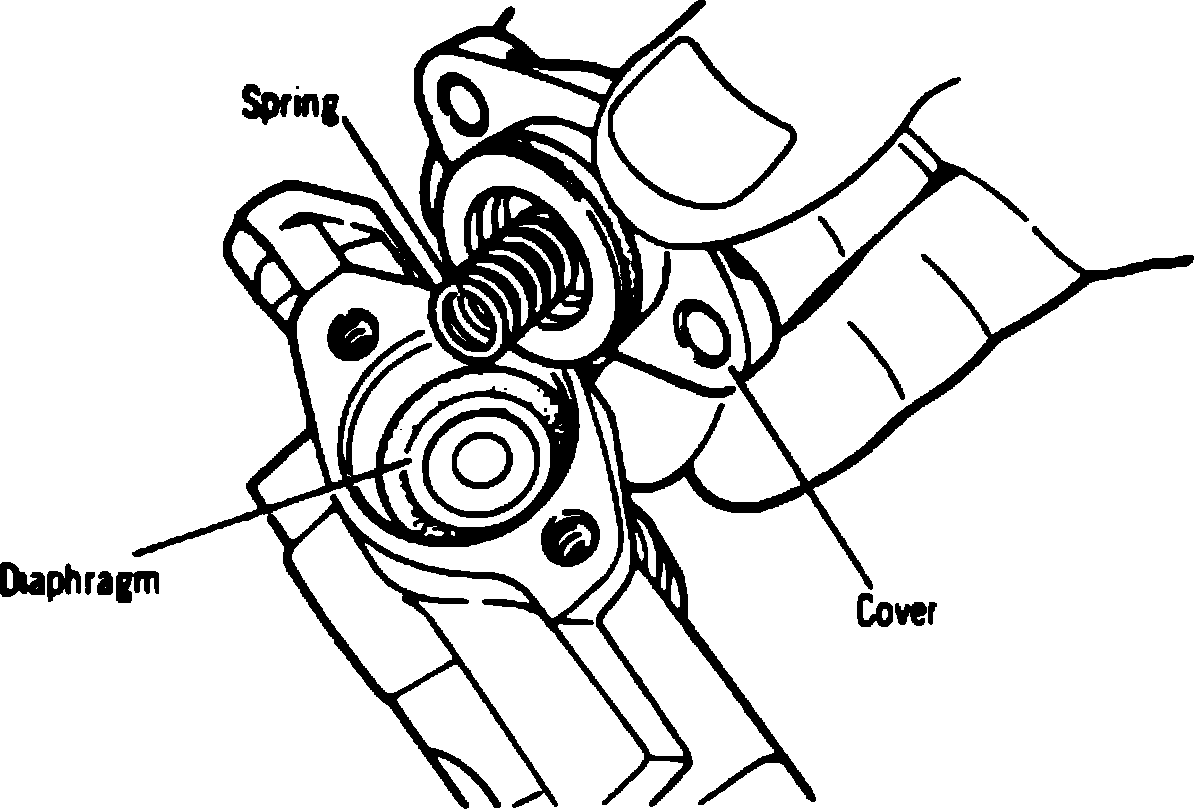

Fig. 47 Pulsation damper removal:

4. Remove fuel pressure regulator and pulsation damper from retainer, then the spring and diaphragm, Fig. 47.

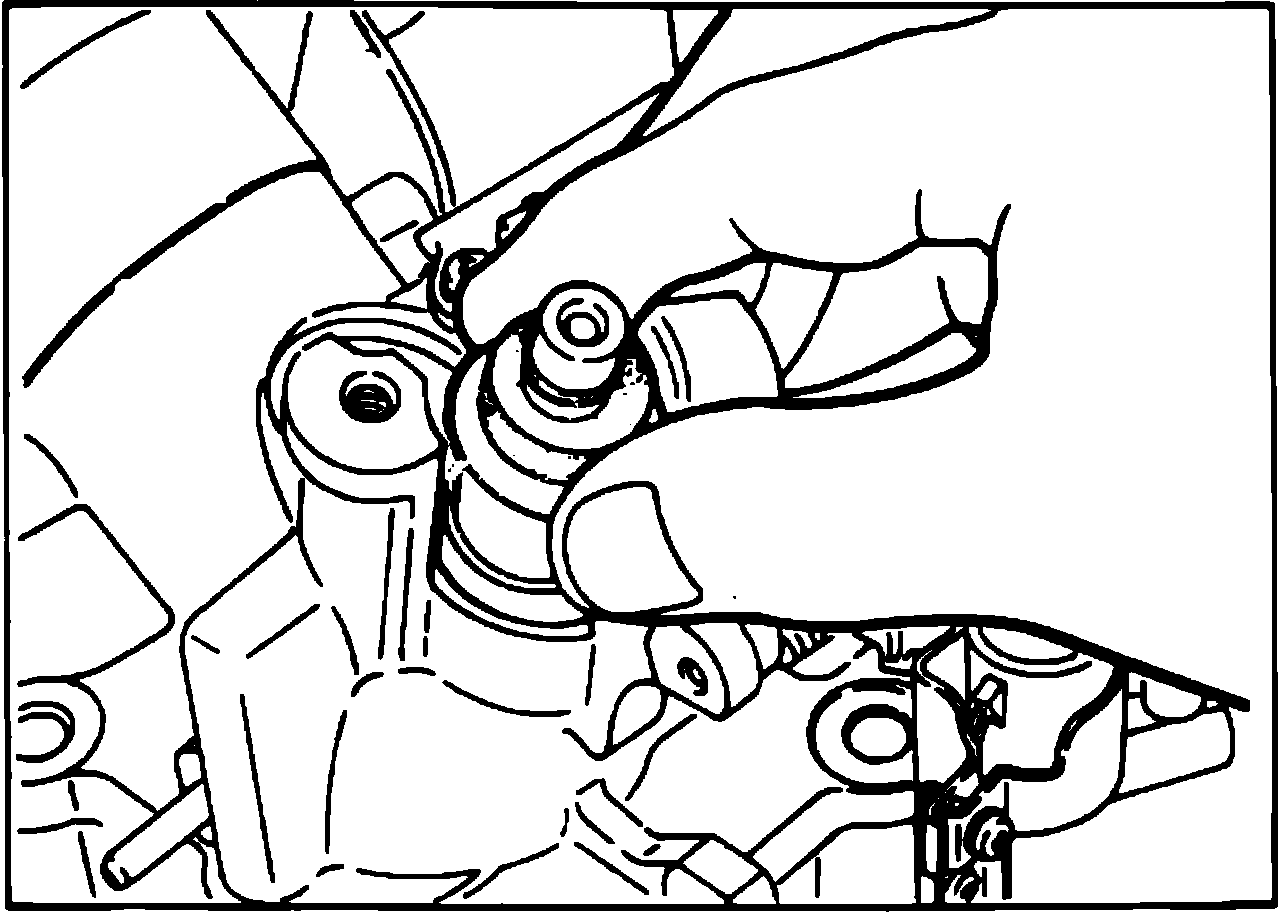

Fig. 48 Injector removal:

5. Manually remove injectors from mixing body, then the gaskets, Fig. 48.
6. Remove throttle return and damper spring, then the connector bracket.

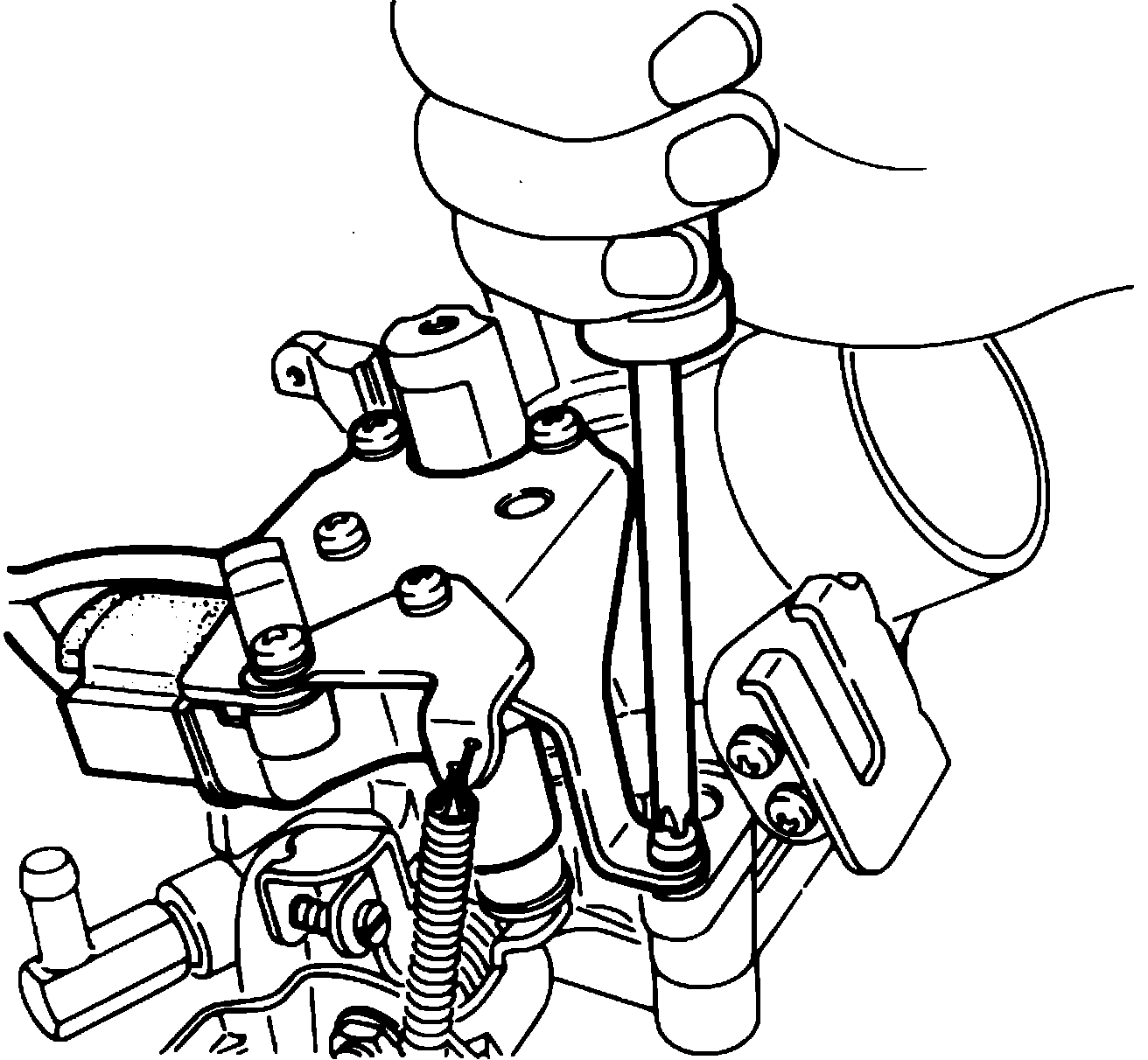

Fig. 49 ISC servo removal:

7. Remove ISC servo bracket attaching bolts, then the servo and bracket, if replacement is required, Fig. 49.
8. Remove mixing body attaching screws, then the mixing body and seal ring.
9. Remove throttle position sensor, if replacement is required.
