Home >> Dodge >> 1984 >> Conquest L4-2555cc 2.6L Turbo >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Throttle Body >> Diagrams

Throttle Body: Diagrams

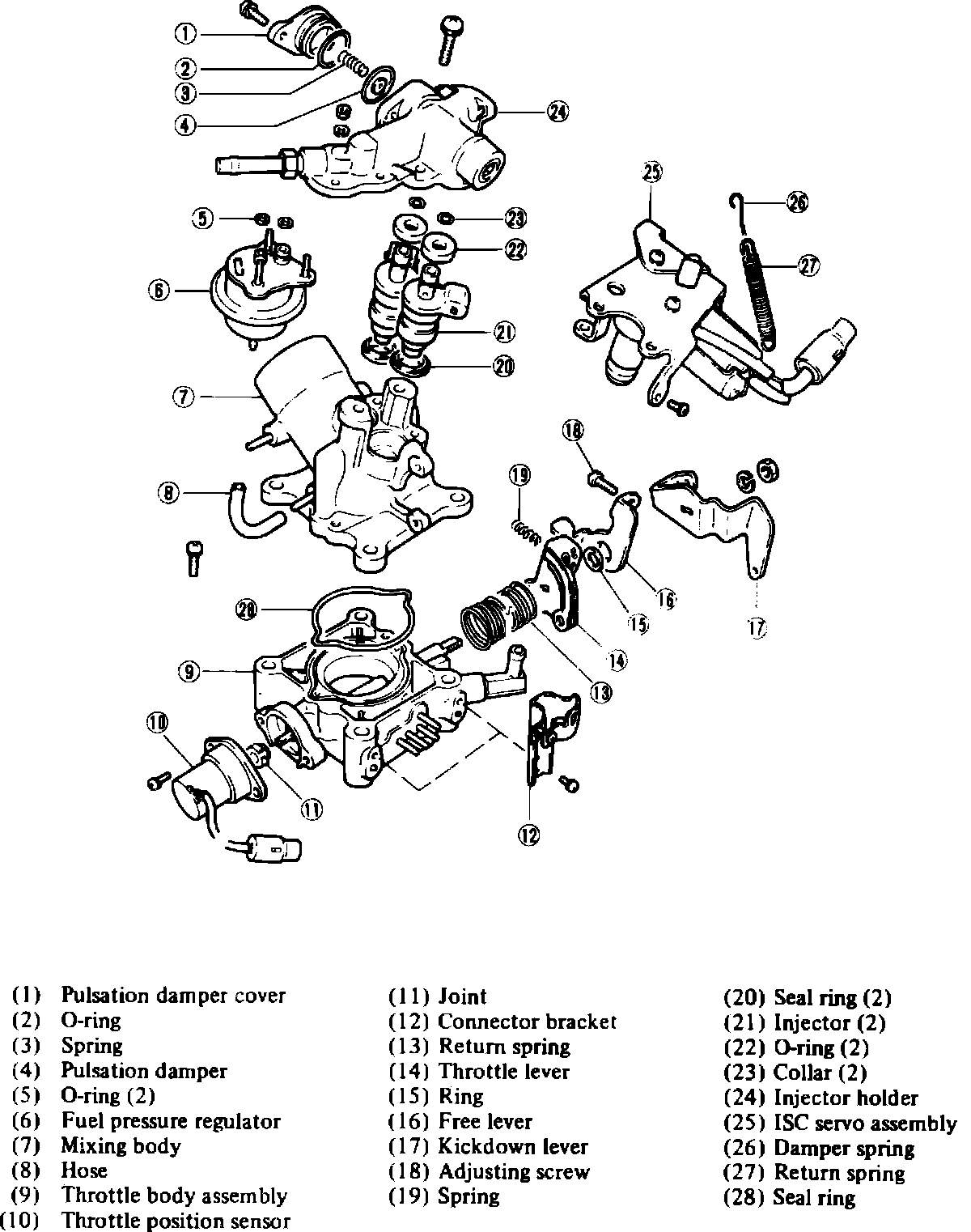

Fig. 45 Exploded view of injection mixer. 1984-86 models shown, 1987-89 similar:
