Pinout Values and Diagnostic Parameters

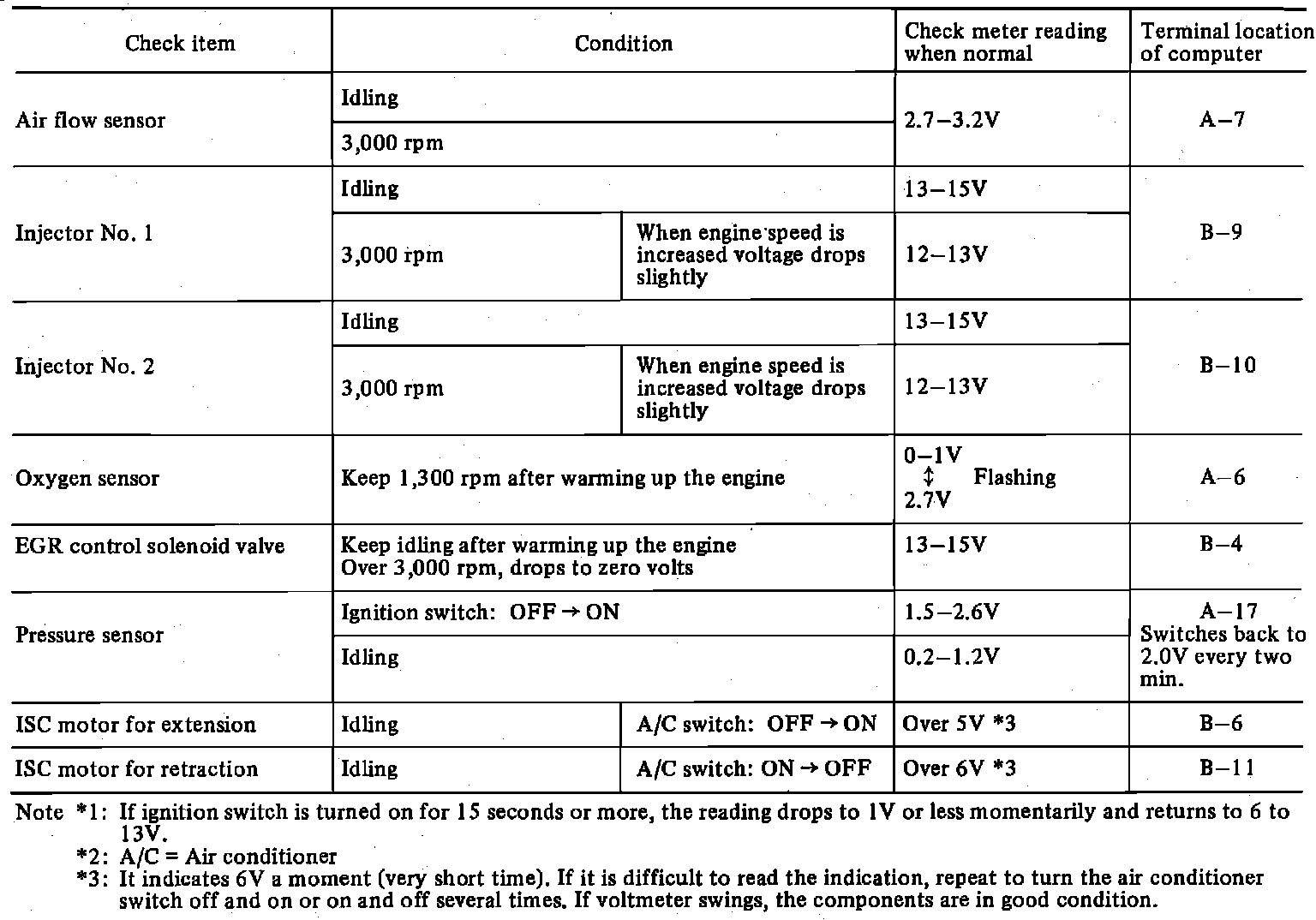

Fig. 16 Output Signal Diagnosis Chart. Part 1 of 2:



Fig. 16 Output Signal Diagnosis Chart. Part 2 of 2:
