ECI Self Diagnosis Connector -Relocation

84chrysler5 Models


1984 Conquest With 2.6L Turbocharged Engine


Subject


Relocation of ECI Self-Diagnosis Connector


Index


FUEL


Date

June 18, 1984


No.


14-34-84

P-2610-C
The location of the electronic controlled injection (ECI) self-diagnosis connector on subject model vehicles built from December, 1983 is relocated from the passenger compartment to underhood just in front of the right strut area..

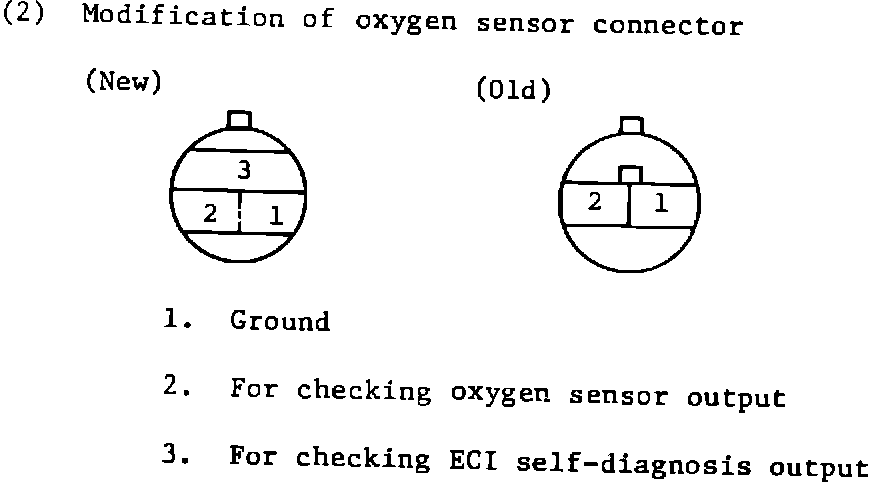

FIGURE 1:

The connector now combines the output terminal (#3) for the selfdiagnosis function and the terminal (#2) for checking the oxygen sensor output (Figure 1).
POLICY: Information only
