Conquest L4-2555cc 2.6L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Complete Body and Chassis Diagrams
Complete Body and Chassis Diagrams

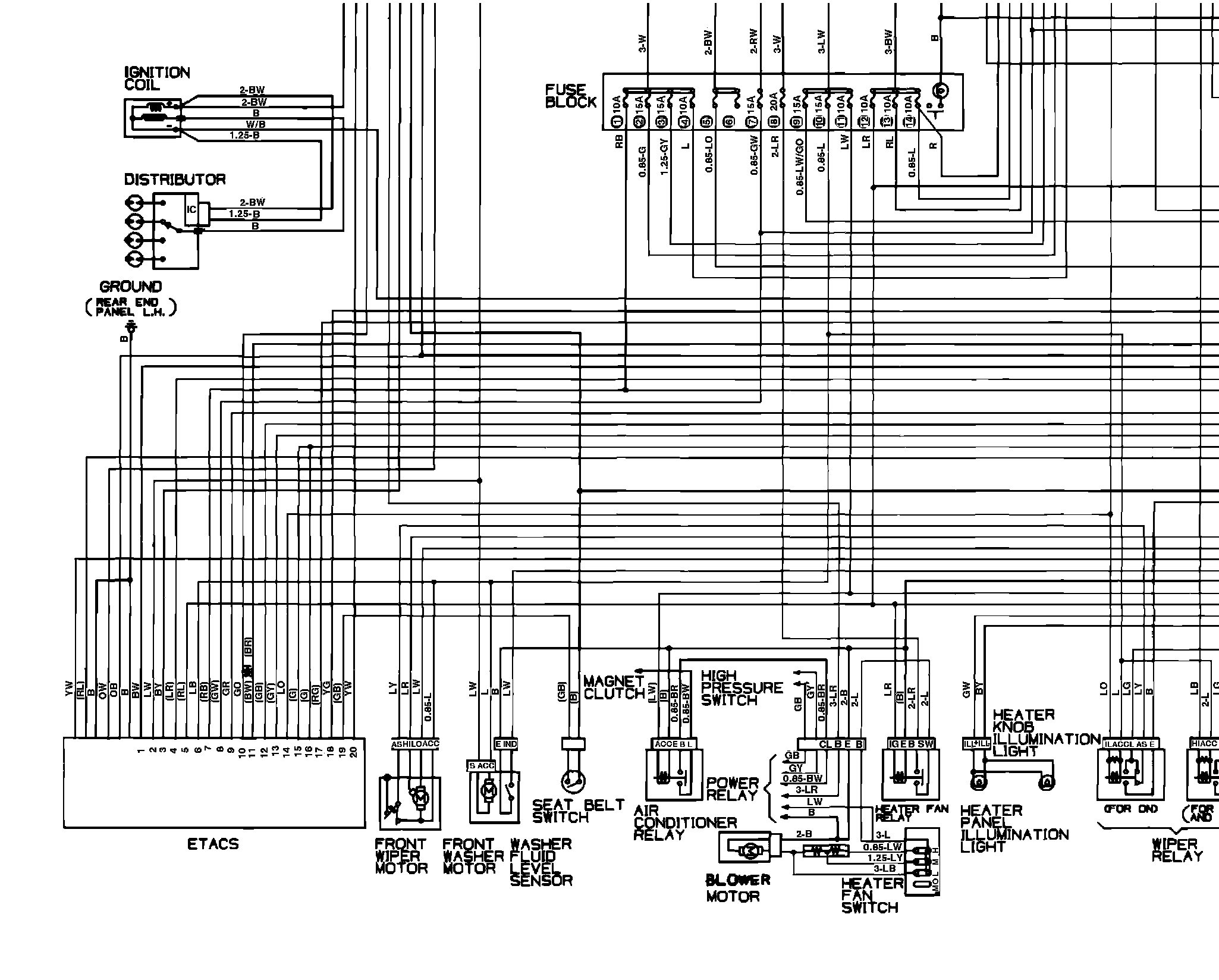

� �S�\�S ��SV��S��St%�S�P�SComplete Body & Chassis Wiring Circuit:
