Home >> Dodge >> 1984 >> Conquest L4-2555cc 2.6L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> W/Intercooler

W/Intercooler

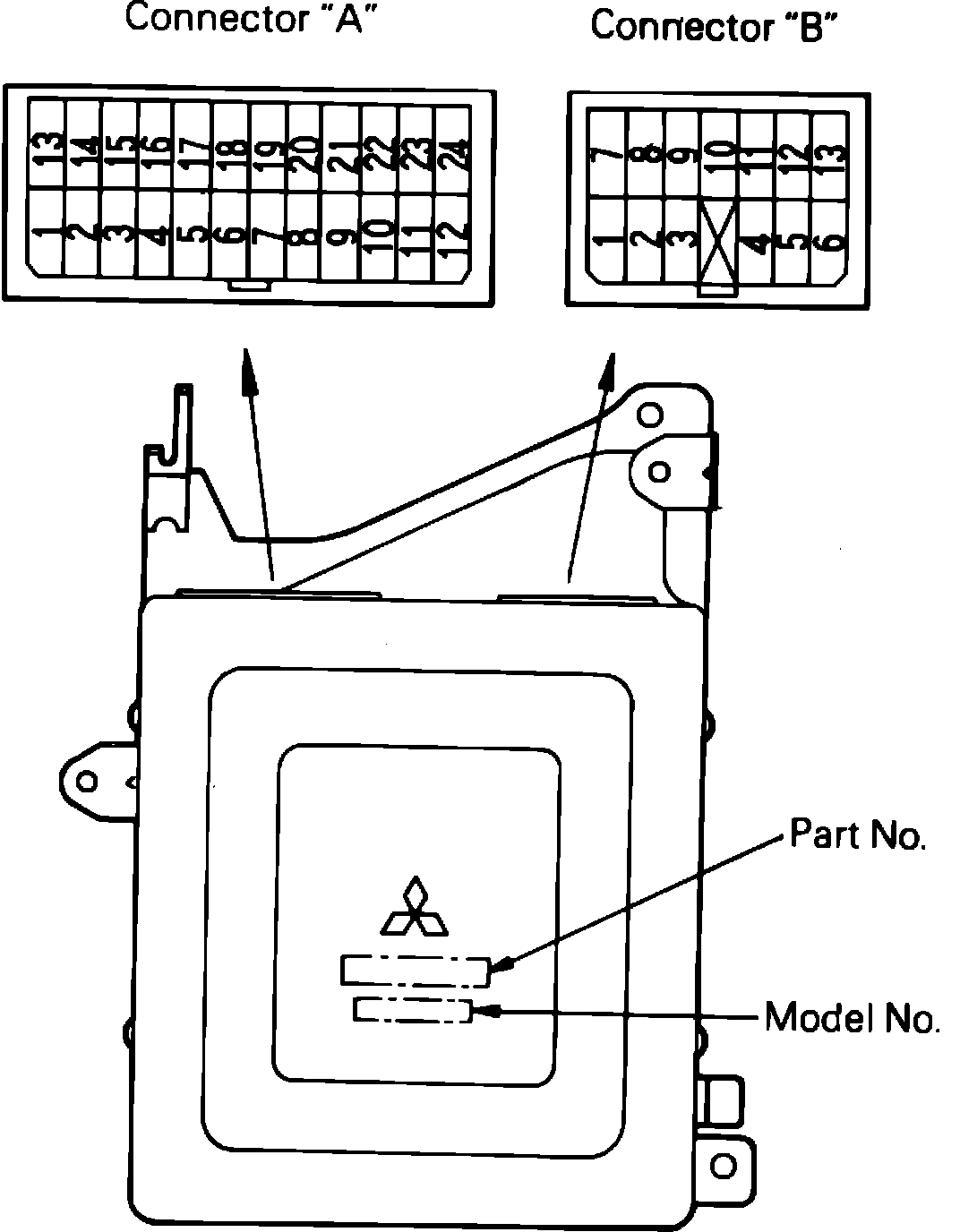

Fig. 18 ECU terminal identification. Conquest w/intercooler:
