Home >> Dodge >> 1984 >> Colt L4-1410cc 1.4L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Clearance and Design Specifications

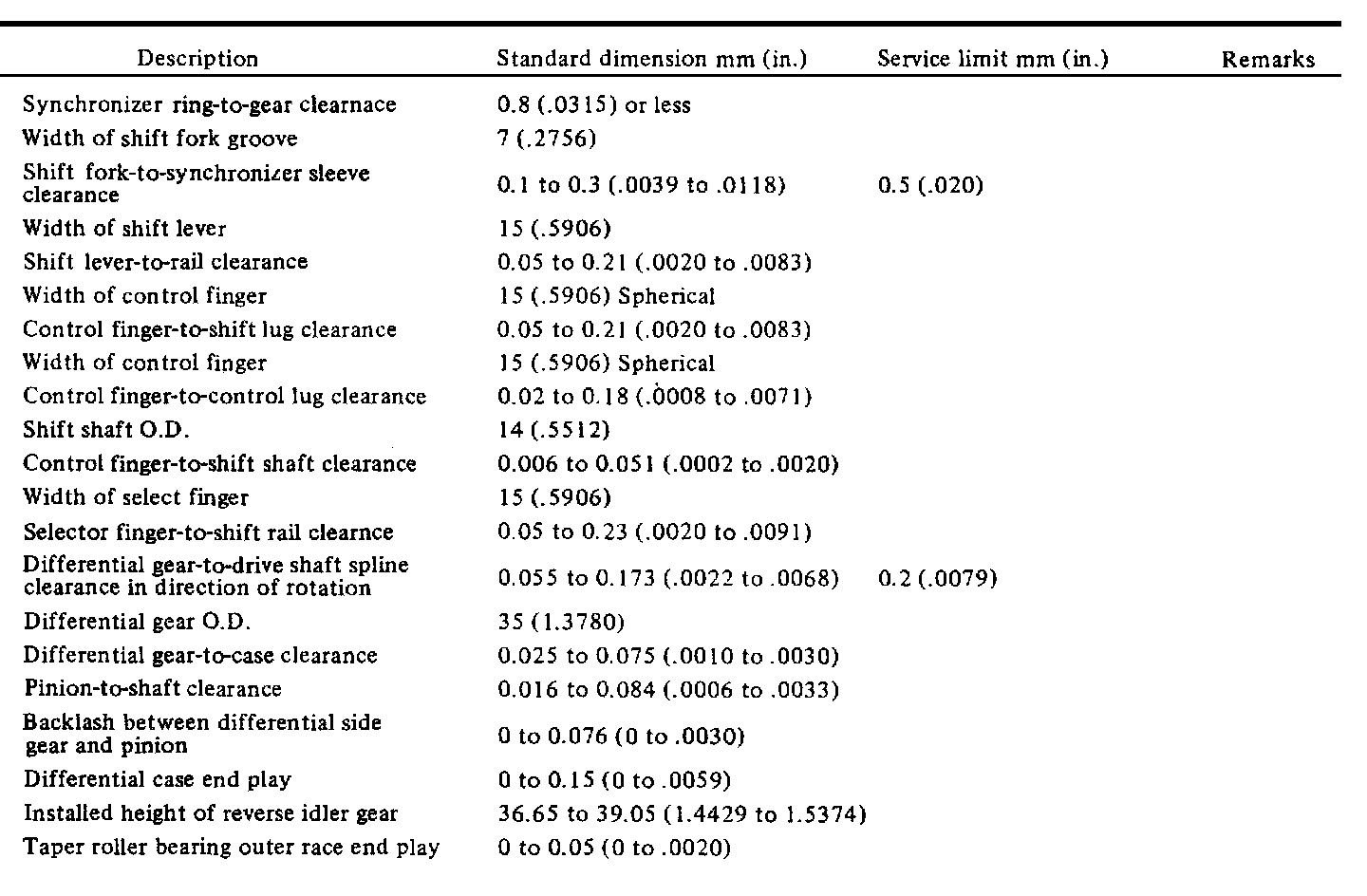

Clearance and Design Specifications

Specifications

Models KM160, KM165 and KM166.

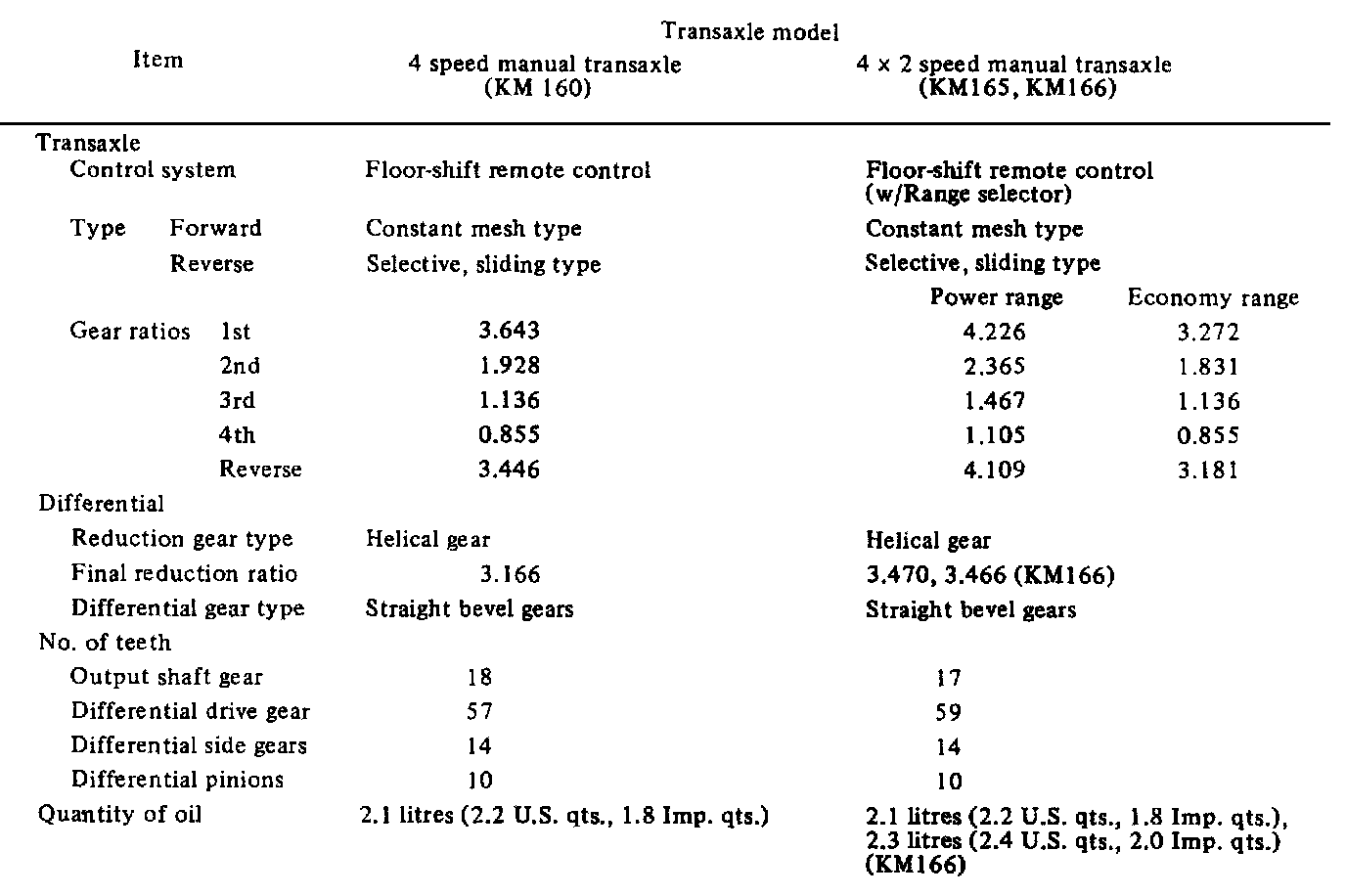

General Specifications:

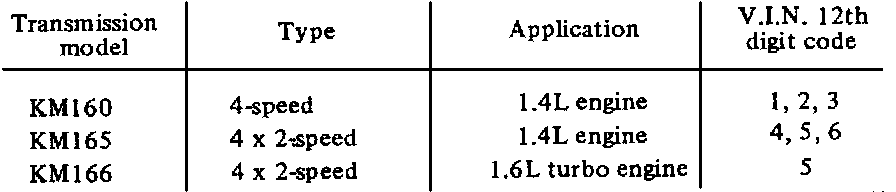

Model To Transaxle Usage List:





Continued:
