Exhaust Gas Recirculation: Diagrams

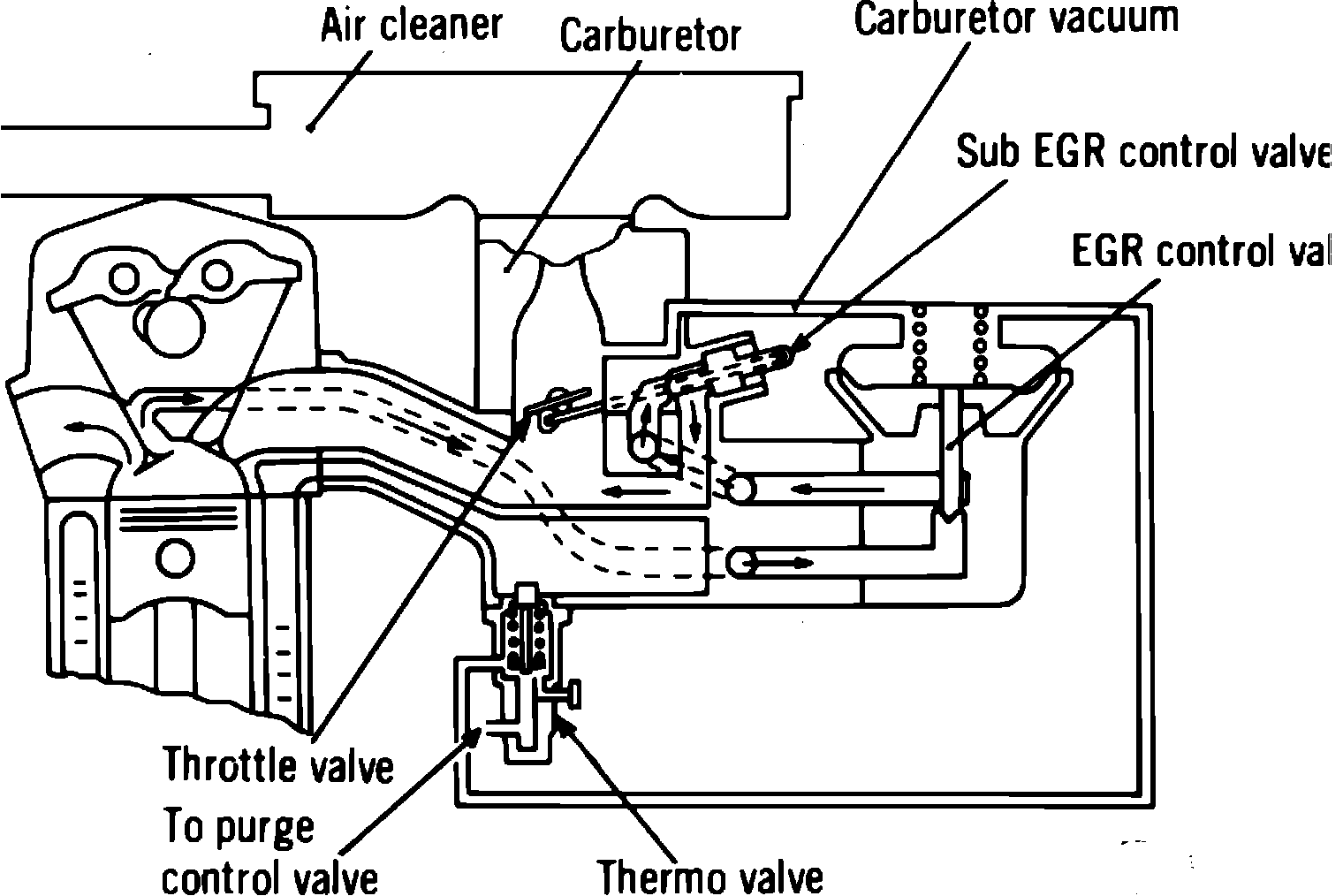

Exhaust Gas Recirculation (EGR) system. 1984-86 1400cc, 1500cc, 1600cc Non-Turbocharged & 2000cc engines, exc. Pickup:
