Front Output Shaft Seal - Removal

REMOVAL

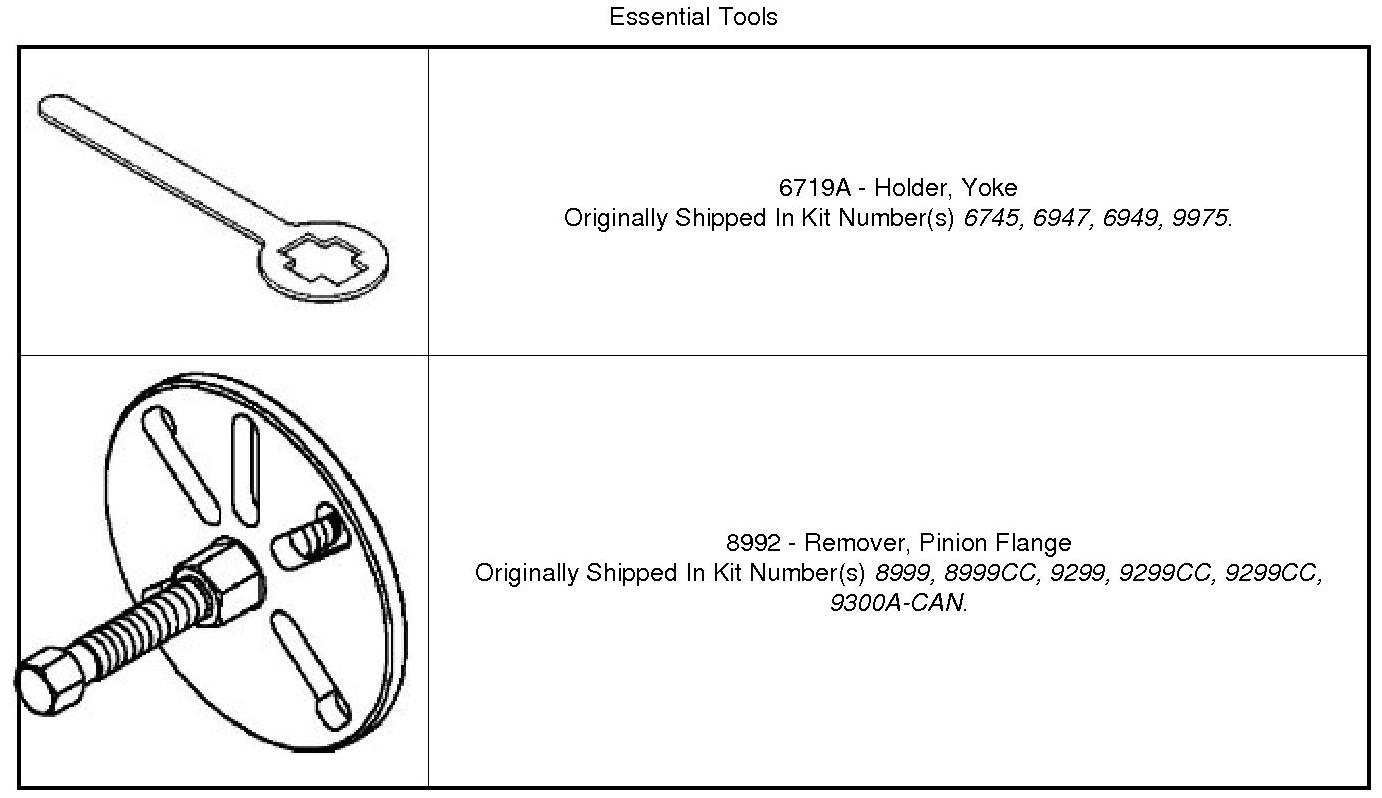

Special Tools:















1. Remove the front propeller shaft Drive Shaft - Removal.
2. Install two bolts 180° apart into the front output shaft companion flange.
3. Place Yoke Holder (1)(Figure 1) over the bolts (2) and against the companion flange.
4. Remove and discard the front companion flange nut.
5. Remove the companion flange from the front output shaft. It may be necessary to use Pinion Flange Remover to remove the companion flange.
6. Using a screw and a slide hammer, remove the front output shaft seal.
