Removal

REMOVAL

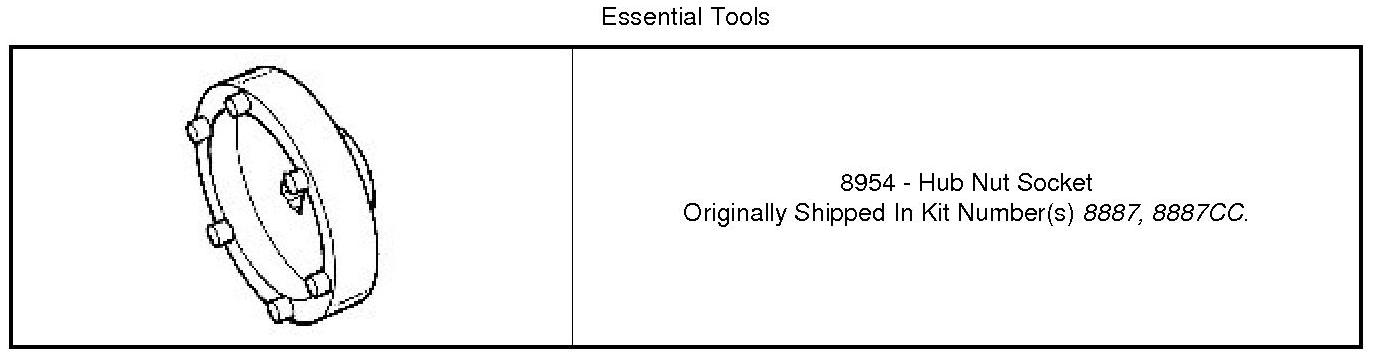

Special Tools:










1. Remove axle shaft flange bolts and remove shaft.

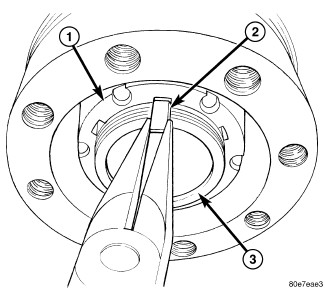

2. Remove retainer ring (1) from the axle shaft tube.

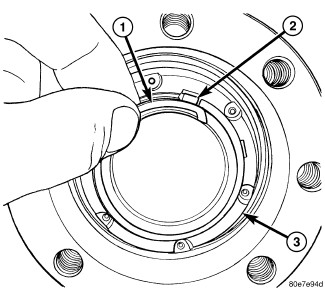

3. Remove hub bearing nut (1) locking key (2) form axle tube (3).
4. Remove hub bearing nut with Socket.
5. Remove hub and bearings from the axle.





6. Pry out hub bearing seal from the back of the hub.

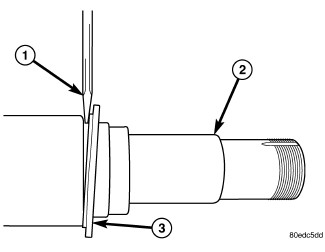

NOTE: The inner part of the seal (3) may stay on the axle tube (2). This part must also be removed with a pry bar (1).

7. Remove rear bearing.
8. Remove hub bearing cups with a hammer and drift.
