Differential Carrier

REMOVAL

Special Tools:










1. Remove propeller shaft.
2. Remove bottom two carrier bolts (1) and drain fluid.

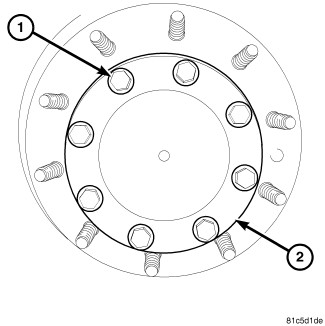

3. Remove axle shaft bolts (1) from axle flange (2).





4. Remove axle shaft from axle shaft (1).





5. Remove a bolt from each side of the carrier and two more bottom bolts.
6. Install a Guide Pins (2) into each side of the housing.
7. Attach Fixture (3) to transmission jack with fixture clamps.
8. Guide Fixture (3) onto the carrier and Guide Pins (2).





9. Remove remaining carrier bolts.
10. Slide fixture (4) with carrier (1) out of the axle housing about three inches onto the Guide Pins (2).
11. Bolt both sides of the Fixture (4) to carrier (1) with two carrier bolts (3).





12. Slide the carrier (2) off Guide Pins and out of the housing (1) with transmission jack and fixture.
