Differential Carrier Bearings - Removal

REMOVAL

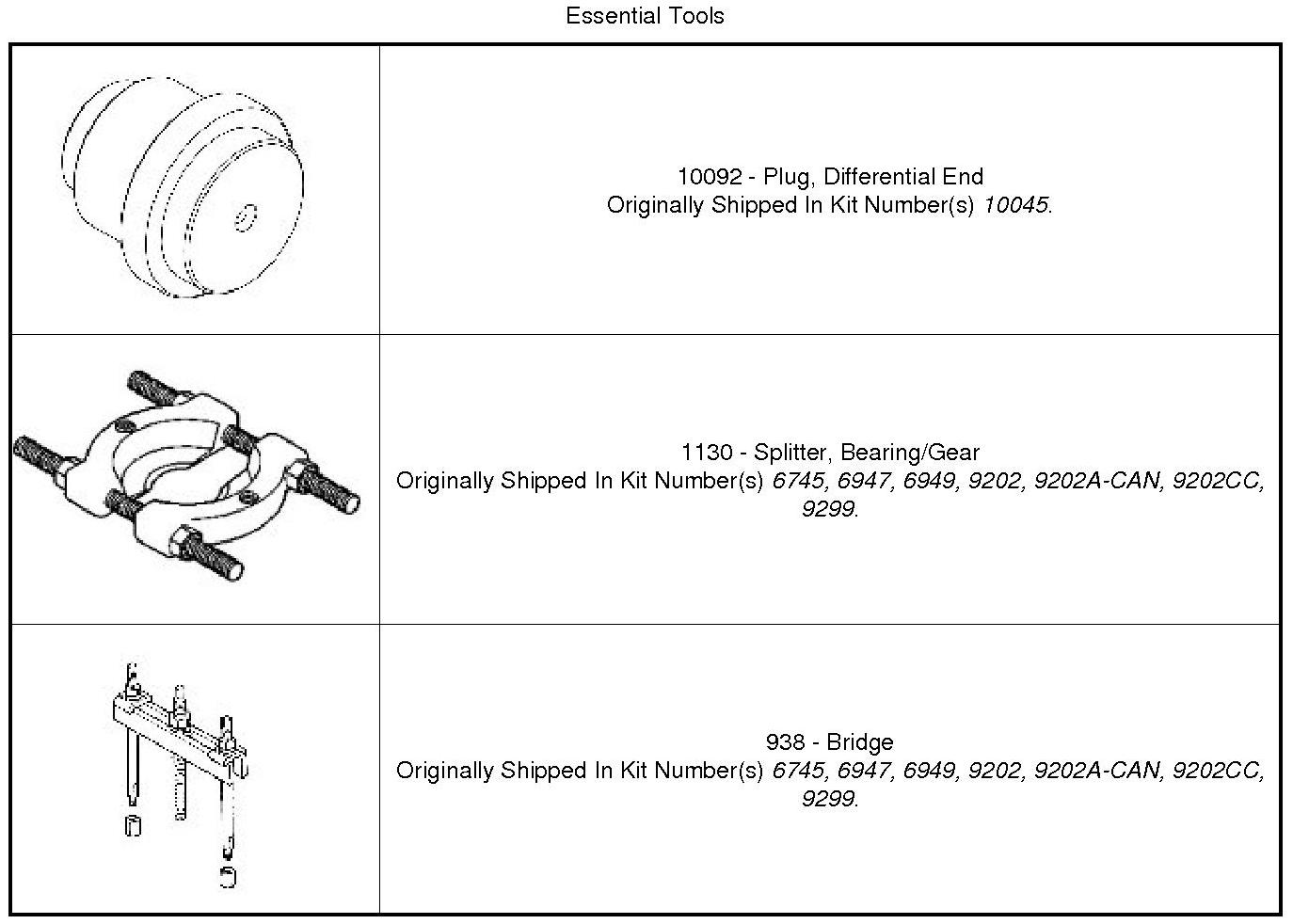

Special Tools:

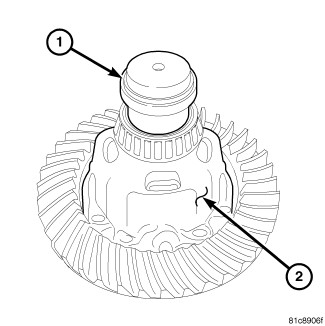

1. Install Plug (1) into differential case this way to remove the large bearing (2).





2. Install Splitter (1) under larger differential bearing (2).





3. Install Bridge (1) on Bearing Splitter (2) and remove larger differential case bearing.

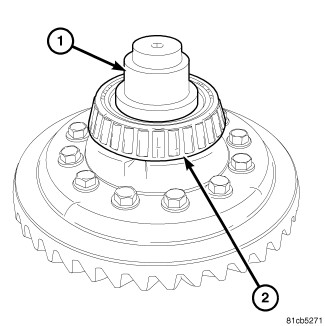

4. Turn Plug (1) over, in other side of the differential case (2) to remove the small differential case bearing.





5. Install Splitter (1) under small differential bearing (2).
6. Install Bridge on Bearing Splitter (1) and remove small differential case bearing.
