Leaf Spring Suspension

LEAF SPRING SYSTEM

NOTE: Some vehicles may snap into position instead using bolts. The jounce bumper will be located in the same position.

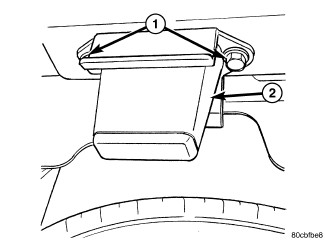

1. Install the jounce bumper (2).
2. Install the two bolts (1) securing the jounce bumper (2) to the bracket and tighten to specifications Rear Suspension Specifications.
