Installation

4X4-COIL OVER

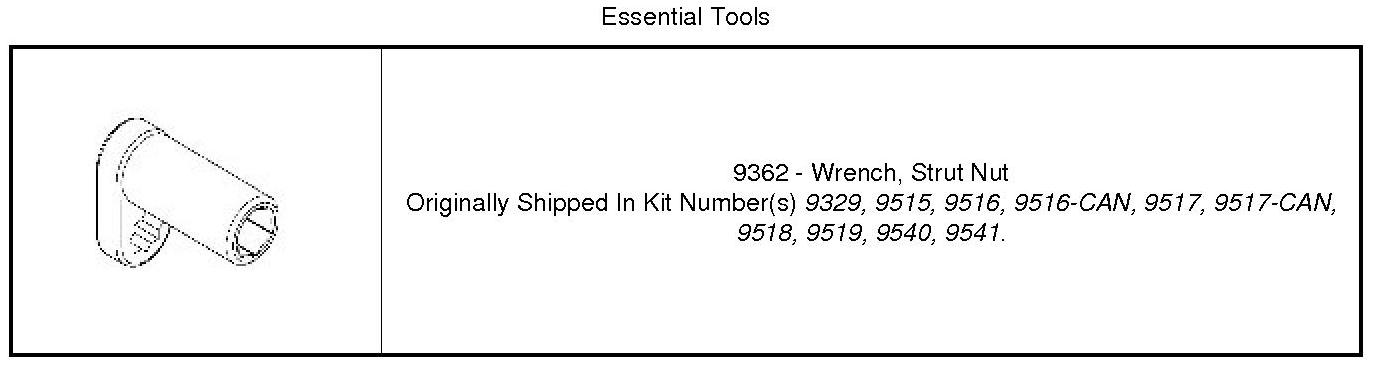

Special Tools:

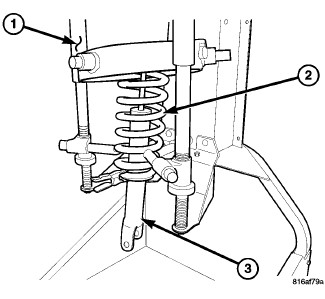

1. Position the shock (1) into the coil spring (3).

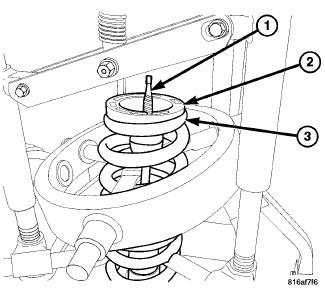

2. Install the upper isolator (2).





3. Install the dust cover.
4. Install the upper shock mounting plate (2).
5. Install the shock upper mounting nut.

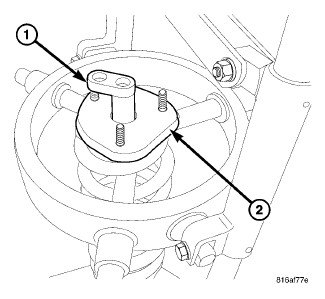

6. Install Strut Nut Wrench (1) (on end of a torque wrench), on shock shaft retaining nut. Next, insert 8 mm socket though Wrench onto hex located on end of shock shaft. While holding shock shaft from turning, tighten nut to specifications .





7. Decompress the spring (2).
8. Remove the shock assembly from the spring compressor tool (1).

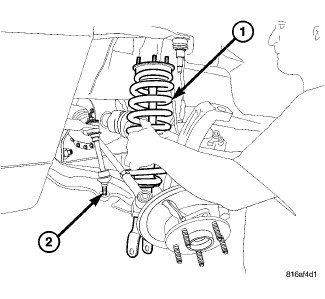

9. Install the shock assembly (1) Installation
