Right Hand - Drag Link To Tie Rod

RH - DRAG LINK TO TIE ROD

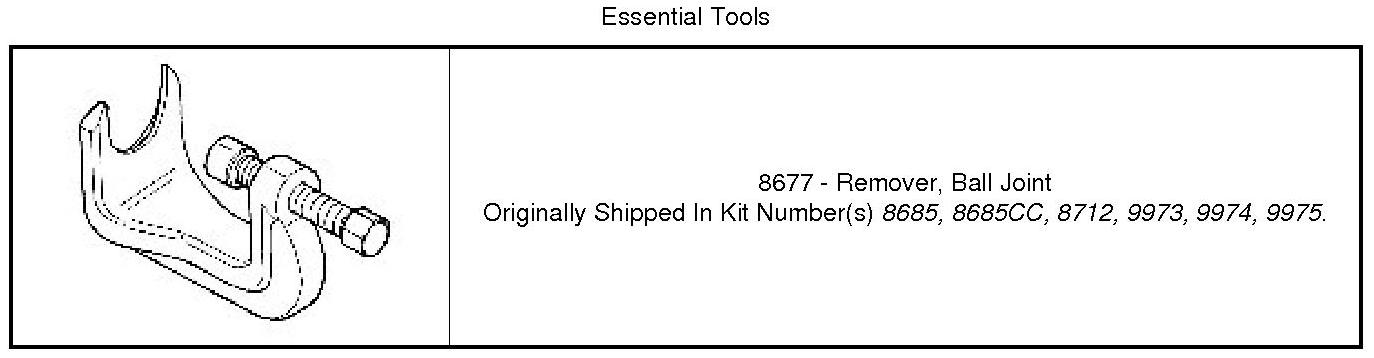

Special Tools:

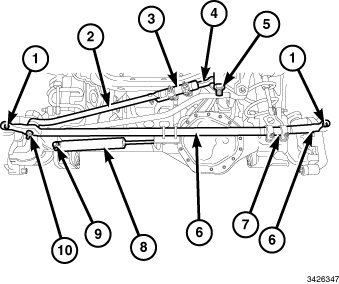

NOTE: All views are typical.





1. Raise and support the vehicle Maintenance.
2. Remove the wheel.
3. Remove tie rod to knuckle nut (1).
4. Remove the drag link to tie rod retaining nut (10).
5. Loosen the nut/bolt on the tie rod adjuster sleeve (7).

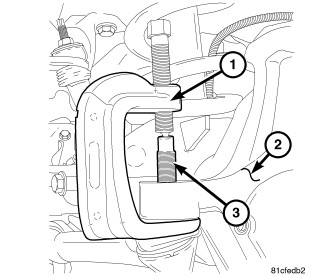

6. Remove tie rod (3) from the knuckle (2) and the drag link from the tie rod with (1).
7. Remove the tie rod end from the adjuster sleeve.
