Home >> Dodge or Ram Truck >> 2012 >> RAM 3500 Truck 4WD L6-6.7L DSL Turbo High Output >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Rear Suspension Specifications

Rear Suspension Specifications






TORQUE

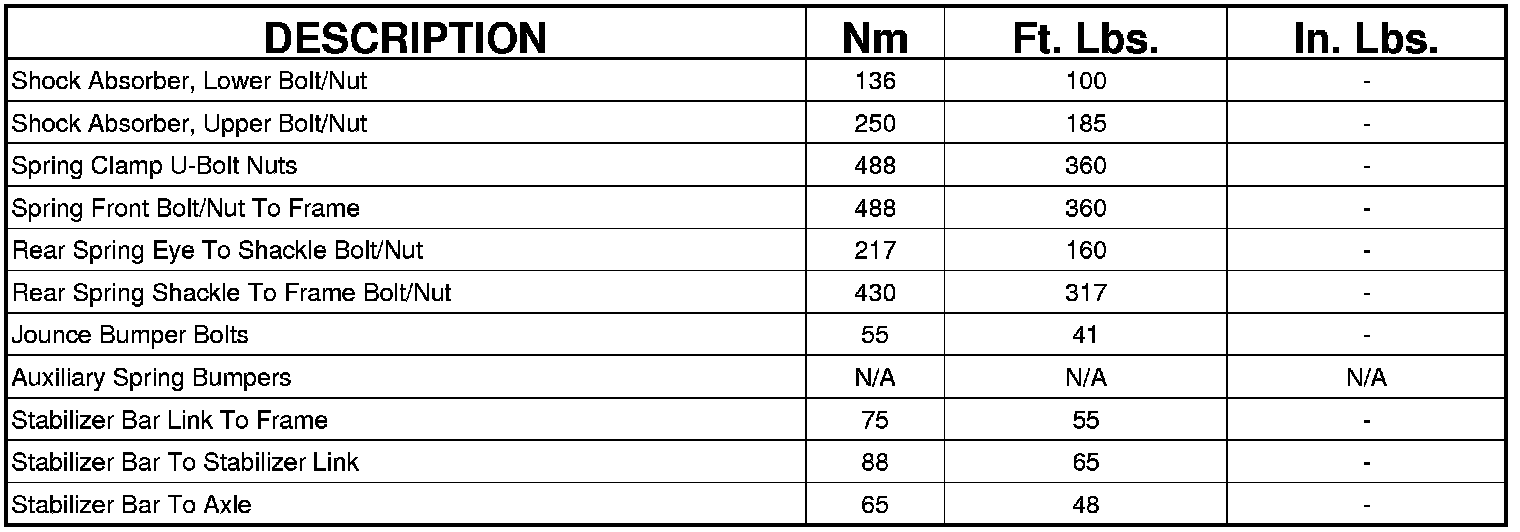

1500

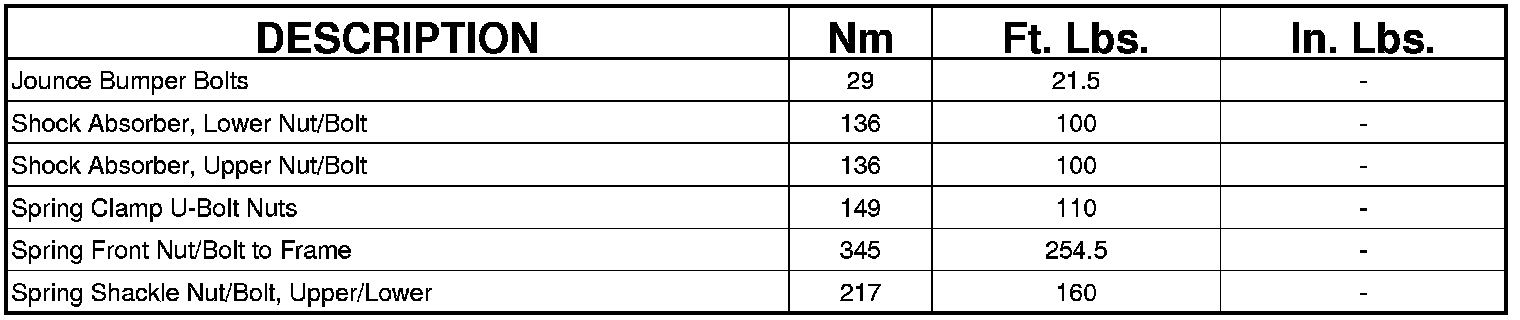

2500 and 3500

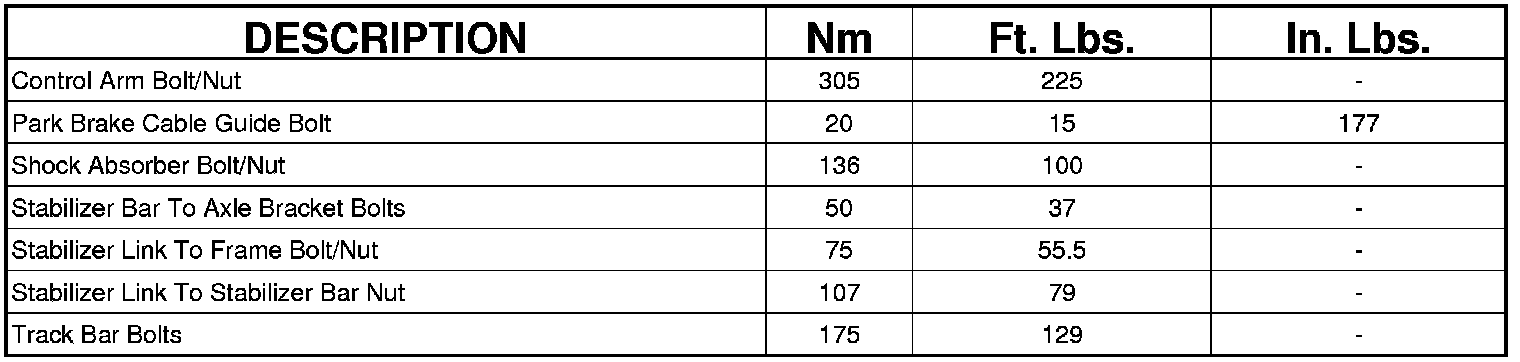

3500 CAB CHASSIS

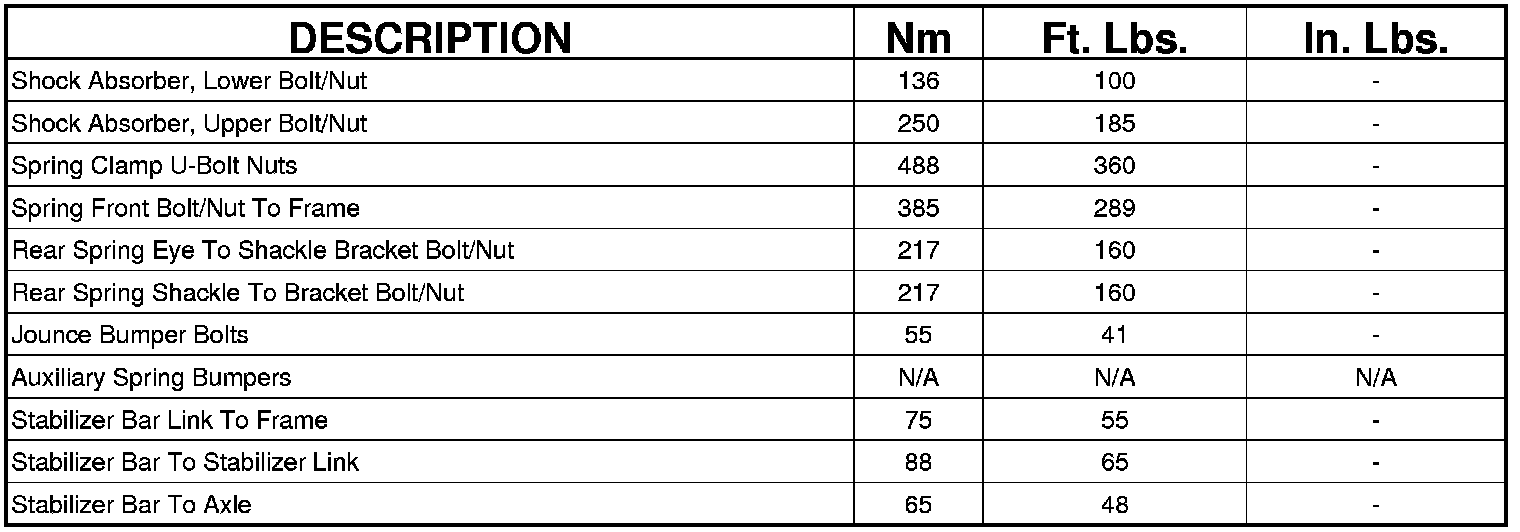

4500 and 5500
