Engine Oil Pan Gasket - Removal

REMOVAL

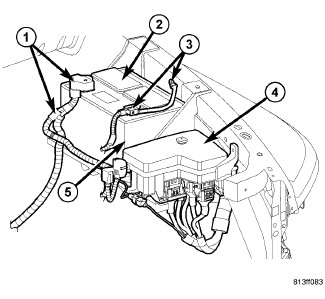

1. Disconnect the battery cables (1,3).





2. Remove the intake air assembly.
3. Remove the inner radiator shroud retaining bolts.
4. Remove the inner radiator shroud.
5. Raise and support the vehicle.










6. Remove the front suspension track bar Removal.
7. Remove the right and left engine mount through bolt Engine Mount Insulator - Removal.
8. Remove the steering gear retaining bolts Steering Gear - Installation.





9. Drain the engine oil.
10. Lower the vehicle.
11. Install the engine lift fixture.
12. Use the engine lift fixture to raise the engine.
13. Raise the vehicle on the hoist.
14. Remove the oil pan retaining bolts.
15. Lower the oil pan enough to allow the removal of the oil pan gasket.
16. Remove the oil pan gasket.
