Rear Brake Hose - Heavy Duty (HD)

REAR BRAKE HOSE - HEAVY DUTY (HD)





1. Install prop rod on the brake pedal to keep pressure on the brake system, Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.
2. Raise and support the vehicle.
3. Remove the brake line (2) located at the axle.





4. Remove the mounting bolt (4) for the brake hose (3) at the axle.

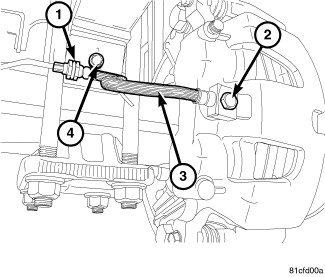

5. Remove the banjo bolt (2) at the caliper.
6. Remove the hose (3).
