Instrument Panel Cup Holder - Removal

REMOVAL





1. Remove the center bezel. Instrument Panel Bezel - Removal

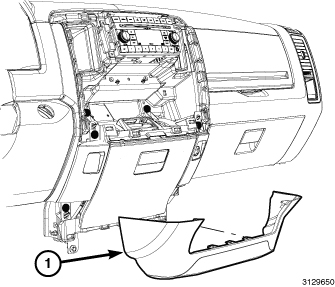

2. Remove the lower closeout trim (1).

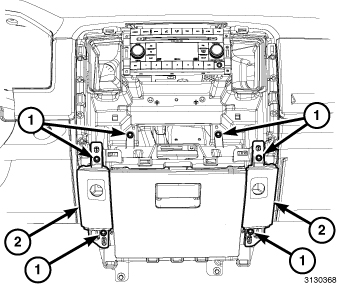

3. Remove the screws (1) and separate the side trim (2).

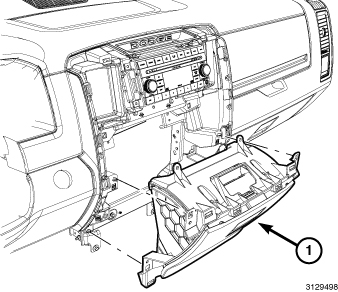

4. Remove the cup holder (1).
