Transfer Case

REMOVAL

1500 - 3500 Standard Chassis





1. Raise and support the vehicle. Maintenance

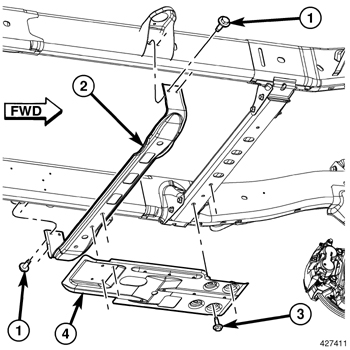

2. Support the skid plate (4) and remove the bolts (3).
3. Remove the skid plate (4).
4. Support the skid plate crossmember (2) and remove the bolts (1).
5. Remove the skid plate crossmember (2).

3500 - 5500 Heavy Duty - Cab Chassis





1. Raise and support the vehicle. Maintenance

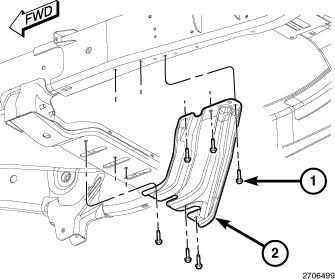

2. Support the skid plate (2) and remove the bolts (1).
3. Remove the skid plate (3).
