Washer Fluid Level Switch - Installation

DIESEL ENGINE

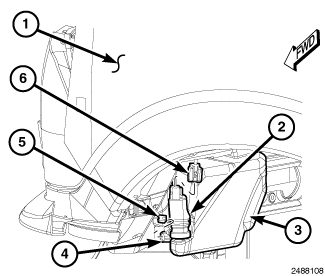

1. Install a new rubber grommet seal into the washer fluid level switch mounting hole of the washer reservoir (3). Always use a new rubber grommet seal on the reservoir.
2. Insert the nipple formation of the switch (4) through the rubber grommet seal in the reservoir.
3. Using hand pressure, press firmly and evenly on the switch mounting flange until the barbed nipple is fully seated in the rubber grommet seal in the reservoir. The flat edge of the switch mounting flange should be pointed upward.
4. Reconnect the Front End Module (FEM) wire harness connector (5) to the switch connector receptacle.
5. Reinstall the splash shield into the front fender (1) wheel housing of the vehicle. Splash Shield - Installation.
6. Refill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
7. Reconnect the battery negative cable.
