Differential

INSTALLATION

Special Tools:










1. Install differential into carrier.
2. Install differential bearing cups and adjusters (1) into carrier.





3. Install differential bearing caps (1).






NOTE: Before tightening bearing caps, Perform differential bearing preload and backlash adjustments.

4. Install new bearing cap (2) bolts and tighten to 190 Nm (140 ft. lbs.).





5. Install differential adjuster cotter pins (1) in bearing caps (2).

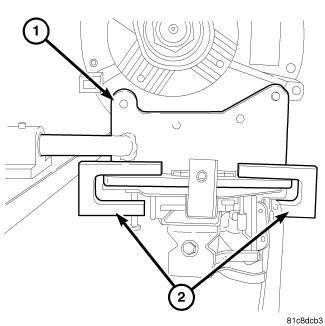

6. Rotate carrier in bench Fixture and attach carrier Fixture (1) to transmission jack with fixture clamps (2).
7. Remove carrier with Fixture and transmission jack from bench Fixture.
