Overrunning Clutch - Disassembly

DISASSEMBLY

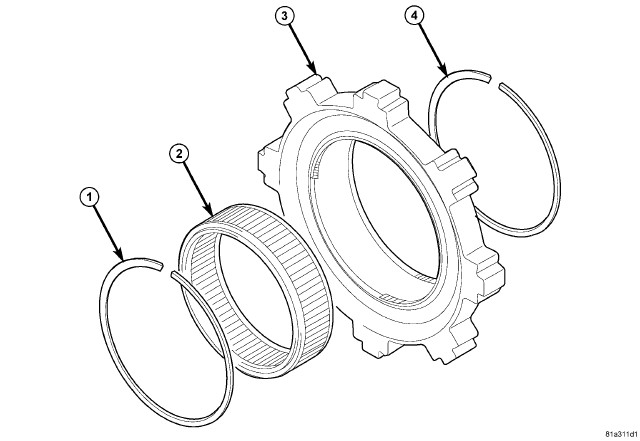

Figure 1 - F1 ONE WAY CLUTCH





1. Remove the snap ring (1 from the F1 one way clutch assembly.
2. Remove the F1 one way clutch (2) from the F1 one way clutch outer race (3)
