Number 3 Clutch - Disassembly

DISASSEMBLY

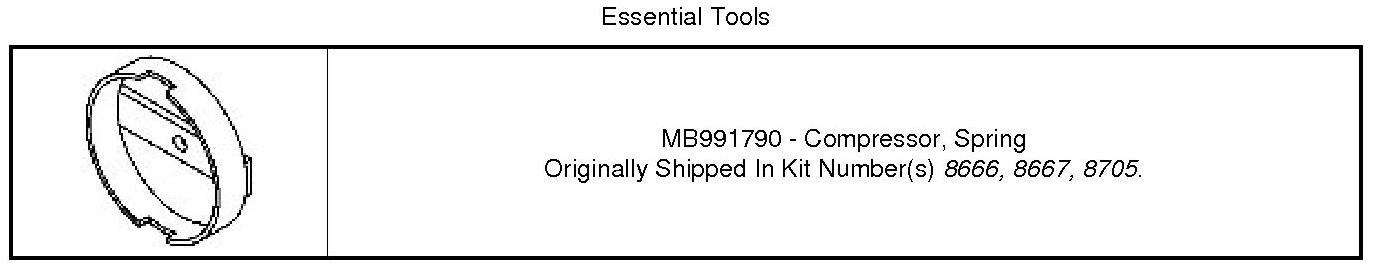

Special Tools:

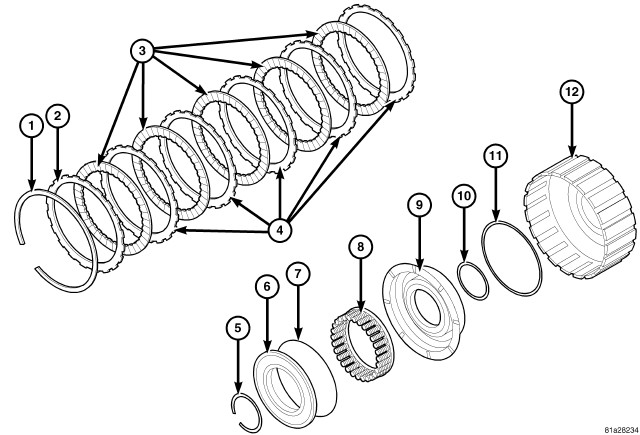

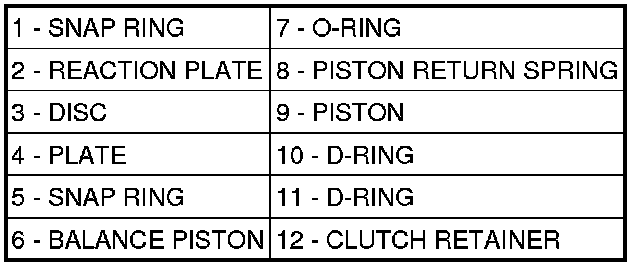

Figure 1 - K3 CLUTCH EXPLODED VIEW

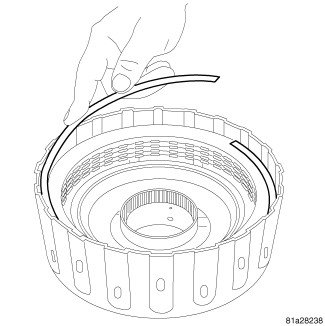

1. Remove the K3 clutch pack snap ring.










2. Remove the K3 clutch pack from the K3 clutch retainer.

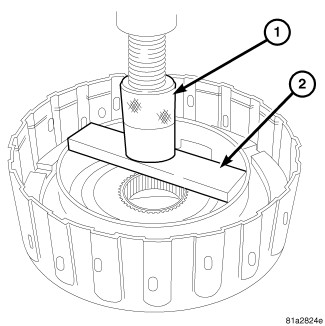

3. Using an arbor press (1) and Compressor tool (2), compress the K3 clutch piston assembly.

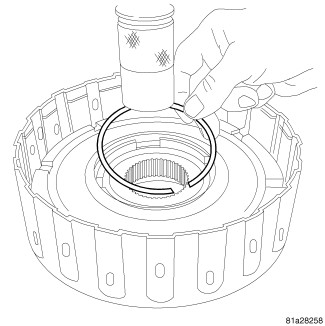

4. Remove the K3 piston snap ring using snap ring pliers.




5. Remove the K3 clutch balance piston.

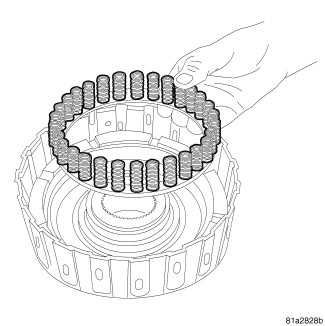

6. Remove the K3 clutch piston return spring.

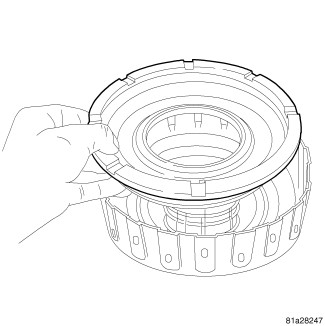

7. Remove the K3 clutch piston.
