Ambient Temperature Sensor - Removal






REMOVAL





1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the grilleGrille - Removal.

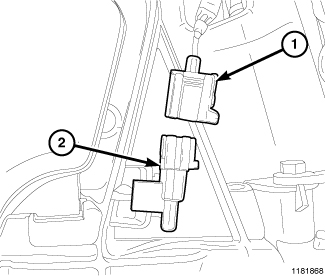

4. Disconnect the sensor electrical connector (1) and remove sensor (2) from vehicle.
