Power Seat Switch - Installation

INSTALLATION

NOTE: Driver side shown. Passenger side similar.

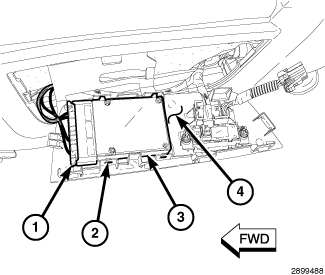

1. Connect the electrical connector (1) to the power seat switch (3). Make sure the connector is fully engaged to the switch.
2. Position the power seat switch to the seat switch bezel (4).
3. Engage the four retaining tabs (2) that secure the power seat switch to the bezel. Make sure the tabs are fully engaged.









4. Engage the retaining tab (4) at the front of the seat switch bezel (2) to the seat cushion side trim panel (3).
5. Carefully engage the remaining seven retaining tabs (1) that secure the seat switch bezel to the seat cushion side trim panel. Start at the front of the switch bezel and work rearward. Make sure all eight retaining tabs are fully engaged.





6. Connect the lumbar control switch electrical connector (1) to the seat wire harness (2).
7. Reconnect the negative battery cable.
8. Verify proper power seat operation.
