Power Seat Lumbar Switch - Installation

INSTALLATION

NOTE: Take the proper precautions to protect the face of the seat switch bezel from cosmetic damage while performing this procedure.

NOTE: Driver side shown. Passenger side similar.

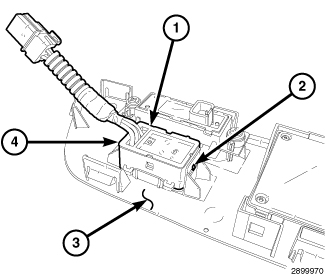

1. Position the lumbar control switch (1) to the seat switch bezel (3).
2. Align the tab on the lumbar control switch with the slot in the seat switch bezel and engage the two retaining tabs (2 and 4) that secure the switch to the bezel. Make sure the tabs are fully engaged.





3. Position the seat switch bezel (2) to the seat and connect the electrical connectors (1 and 3).





4. Engage the retaining tab (4) at the front of the seat switch bezel (2) to the seat cushion side trim panel (3).
5. Carefully engage the remaining seven retaining tabs (1) that secure the seat switch bezel to the seat cushion side trim panel. Start at the front of the switch bezel and work rearward. Make sure all eight retaining tabs are fully engaged.





6. Connect the lumbar control switch electrical connector (1) to the seat wire harness (2).
7. Reconnect the negative battery cable.
8. Verify proper power seat operation.
