Anti-Lock Brake System Module - Description






DESCRIPTION

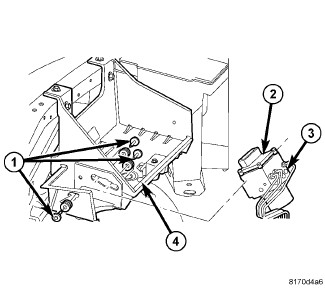

The Antilock Brake Module (ABM) (2) is mounted to the Hydraulic Control Unit (HCU) (3) and operates the ABS system.
