Diesel Exhaust Fluid Dosing Control Unit - Installation

INSTALLATION






NOTE: For clarity purposes the Dosing Control Unit was removed from the frame mounting bracket.

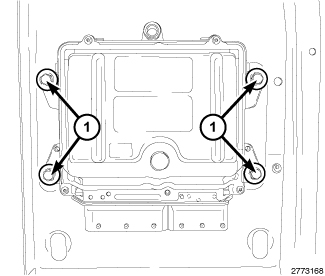

1. Position the Diesel Exhaust Fluid (DEF) dosing control unit to bracket. Tighten bolts (1) to 12 Nm (106 in. lbs.).






NOTE: For clarity purposes the Dosing Control Unit was removed from the frame mounting bracket.

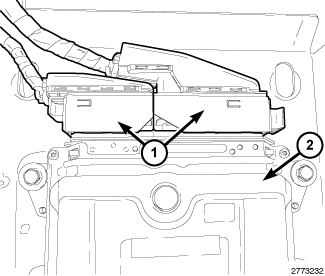

2. Connect the DEF dosing control unit (2) harness connector (1).
3. Connect both negative battery cables.
