Intercooler: Testing and Inspection

DIAGNOSIS AND TESTING - LEAKS

Special Tools:















Low turbocharger boost pressure and low engine performance can be caused by leaks in the charge air cooler or plumbing. Fuel staining on the exhaust manifold can also be an indication that there are leaks in the air system. The following procedure outlines how to check for leaks in the charge air cooler system.

This procedure can also be used to check for leaks in the wastegate signal line or the wastegate canister.

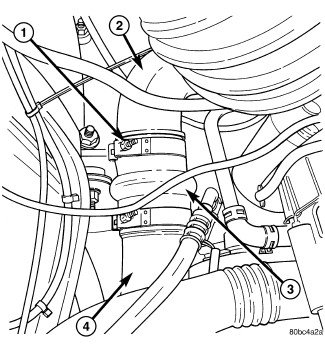

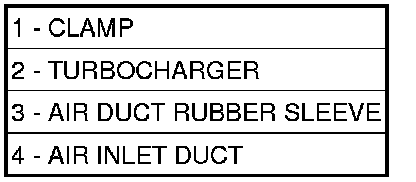

1. Loosen clamp and remove air inlet hose from turbocharger.
2. Insert CAC Tester Tool into the turbocharger inlet. Tighten tool clamp to 8 Nm (72 in. lbs.).

CAUTION: Do not apply more than 138 kPa (20 psi) air pressure to the charge air cooler system, severe damage to the charge air cooler system may occur.

3. Connect a regulated air supply to air fitting on CAC Tester. Apply 27.5 - 55 kPa (4 - 20 psi) to Tool.
4. Using MOPAR(R) Air Leak Detector, check the rubber sleeves, clamps, charge air cooler and intake manifold for leaks.
5. Using MOPAR(R) Air Leak Detector check for leaks at the wastegate signal line, wastegate canister and wastegate command valve.
