Description

DESCRIPTION










Six individual, solenoid actuated high-pressure fuel injectors are used (6). The injectors are vertically mounted into a bored hole in the top of the cylinder head. This bored hole is located between the intake/exhaust valves.





High-pressure connectors (13), mounted into the side of the cylinder head, connect each fuel injector to each high-pressure fuel line (1).

FUEL INJECTOR ID CORRECTION CODES:

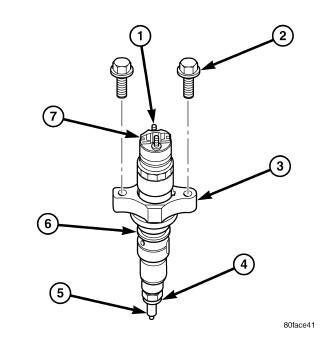

Each fuel injector has a six-digit alphanumeric correction code. The correction code is printed on the intake side of the fuel injector (1) and is used to identify injector calibration. When replacing any fuel injectors, this code must be entered into the vehicles Powertrain Control Module (PCM) using a diagnostic scan tool. In addition, if a new PCM is installed, use a diagnostic scan tool to program all six of the injector codes from the original fuel injectors into the new PCM.

The valve cover and valve cover gasket will need to be removed in order to manually record the values from the original injectors. Contact cleaner or brake cleaner may be used to clean the fuel injector.
