Diesel Exhaust Fluid Level/Temperature Sensor - Removal

REMOVAL

Special Tools:










1. Disconnect both negative battery cables.
2. Remove Diesel Exhaust Fluid (DEF) tank Diesel Exhaust Fluid Tank - Removal.

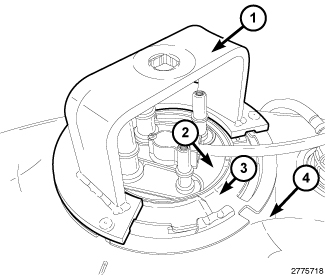

3. Using the DEF Module Lock Ring Wrench (1), remove the lock ring (3) from the DEF tank (4).
4. Remove the level/temperature sensor (2) from DEF tank (4).
5. Remove and discard O-ring seal.
