Closed Crankcase Ventilation System

INSTALLATION





1. Clean the filter sealing surface on the cylinder head cover (2) with a clean shop towel.

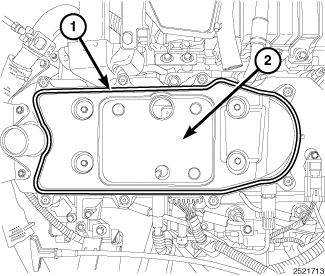

2. Install a new gasket (1) onto the cylinder head cover (2).

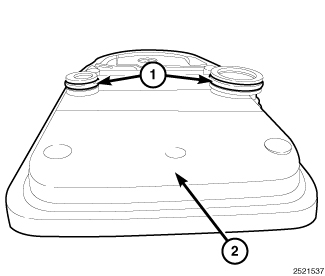

3. Apply clean engine oil to the two bottom O-ring (1) on the breather element (2) and install the new breather element onto the cylinder head cover.

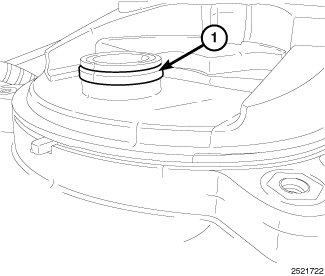

4. Apply clean engine oil to the top O-ring (1) on the breather element (2).






CAUTION: The use of air tools is not recommended as damage to the component may result.

5. Install the breather cover and the oil fill cap (3). Tighten bolts (2) to 10 Nm (89 in. lbs.).
6. Install the breather hose (1) onto the breather cover.
7. If equipped, install engine covers.
