Exhaust Gas Recirculation (EGR) Airflow Control Valve - Installation

INSTALLATION

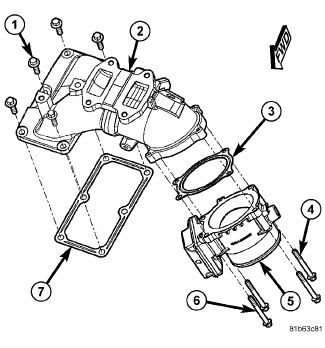

The EGR Air Flow Control Valve (5) is bolted to the end of the air intake connection (2).

1. Obtain a new gasket (3). Before positioning the new gasket (3), be sure to clean mating surfaces at the top of air flow control valve and the bottom of air intake connection (2).
2. Install four mounting bolts (4) and (6). Tighten four bolts to 10 Nm (89 in. lbs.).

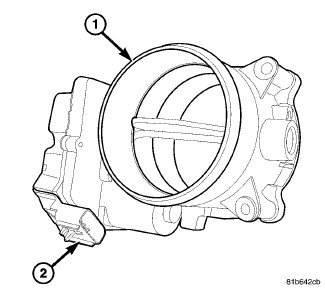

3. Connect the electrical connector at point (2).
4. Connect the air cooler duct to bottom of air flow control valve. Install and tighten the duct clamp.
