Removal

REMOVAL

1. Disconnect both negative battery cables.

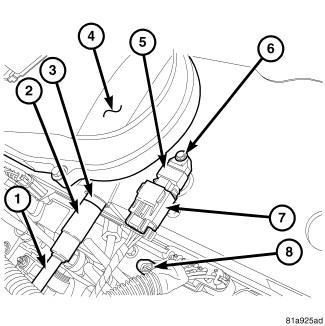

2. Disconnect the CP sensor harness connector (7).
3. Remove bolt (6) and the CP sensor (5) from valve cover (4).
