Tail Stop Turn Lamp Bulb - Removal

BULB






NOTE: The rear lamp unit contains two bulbs: park/stop/turn signal/side marker and backup. The service procedures for each bulb are the same, only the bulb sizes and types may differ.

1. Disconnect and isolate the battery negative cable.

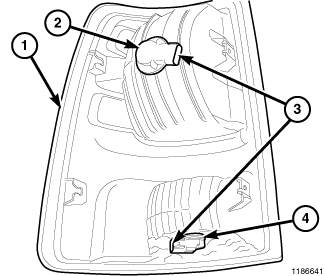

2. Remove the rear lamp unit (1) from the end of the box side panel. Tail Stop Turn Lamp - Removal
3. Disconnect the chassis wire harness connector (3) from the park/stop/turn signal/side marker bulb socket (2) on the back, or the backup (4) bulb socket on the bottom of the lamp housing.
4. Firmly grasp the socket on the lamp housing and rotate it counterclockwise about 30 degrees to unlock it.
5. Pull the socket and bulb straight out from the keyed opening in the housing.
6. Pull the base of the bulb straight out of the socket.
